Product Description

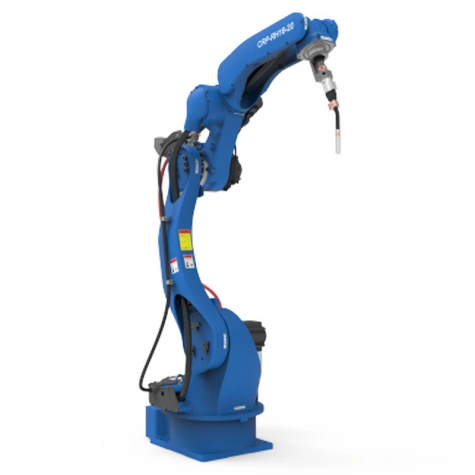

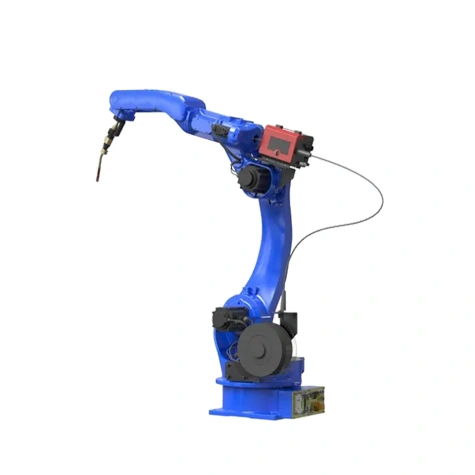

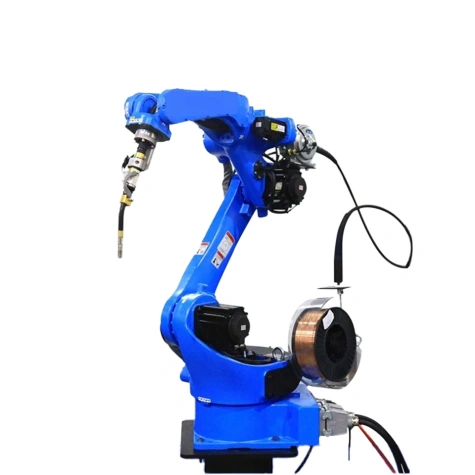

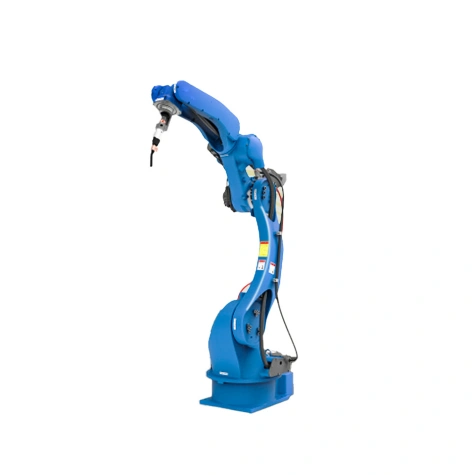

Smart Industrial Robot Arm
Elevate your production efficiency with our 6-Axis Industrial Welding Robot—boasting a 1.8m reach, ultra-compact design, and flexible floor/ceiling mounting, it excels in welding, material handling, assembly, and more with high operating speed, exceptional repeat positioning accuracy, and a spacious working envelope; featuring independent dual-circuit emergency stops, isolated 380V/200V power, and integrated EMC/EMI filtering for stable, safe operation, its 46mm central bore accommodates water-cooled and corrugated torches, paired with built-in high-flex cables for consistent weld quality, making this versatile robot a reliable, high-performance automation solution to boost your bottom line.
Product Details
Technical Specifications
(Custom configurations available upon request.)
| Category | Parameter | Value |
| Model | Model | SH-RA |
| Arm Type | Arm Configuration | Vertical Multi-Joint |
| Degrees of Freedom | Degrees of Freedom | 6-axis |
| Maximum Payload | Maximum Payload | 20KG |
| Maximum Stroke | Axis 1 | -167° – 167° |
| Axis 2 | 0° – 175° | |
| Axis 3 | -80° – 150° | |
| Axis 4 | -190° – 190° | |
| Axis 5 | -105° – 130° | |
| Axis 6 | -210° – 210° | |
| Maximum Speed | Axis 1 | 159°/S |
| Axis 2 | 159°/S | |
| Axis 3 | 169°/S | |
| Axis 4 | 280°/S | |
| Axis 5 | 240°/S | |
| Axis 6 | 483°/S | |
| Allowable Torque | Axis 4 | 48N·m |
| Axis 5 | 48N·m | |
| Axis 6 | 28N·m | |
| Allowable Moment of Inertia | Axis 4 | 1.8kg·m² |
| Axis 5 | 1.8kg·m² | |
| Axis 6 | 0.8kg·m² | |
| Repeat Positioning Accuracy | ±0.08mm | |
| Maximum Reach | 1720mm | |
| Robot Weight | 285KG | |
| Mounting Method | Floor-mounted, Ceiling-mounted | |
| Installation Environment | Ambient Temperature | 0~45°C |
| Relative Humidity | 20~80% (no condensation) | |
| Vibration | ≤0.5G | |
| Other Requirements | Must be installed away from flammable/corrosive liquids/gases and electrical interference sources | |
| IP Rating | IP Rating | IP56 |
| Features | Features | Compact structure, high speed, high precision, high expandability, easy operation |
| Applications | Applications | Welding, Cutting, Assembly, Material Handling, Marking, Grinding |
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Features

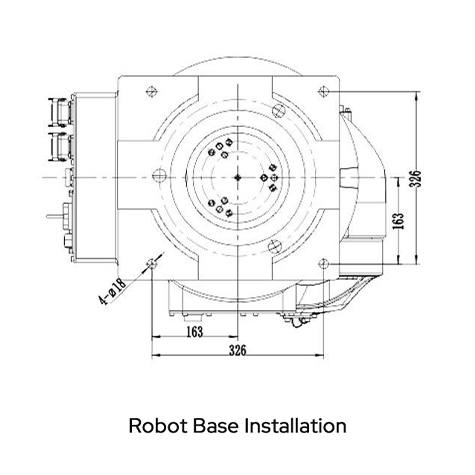

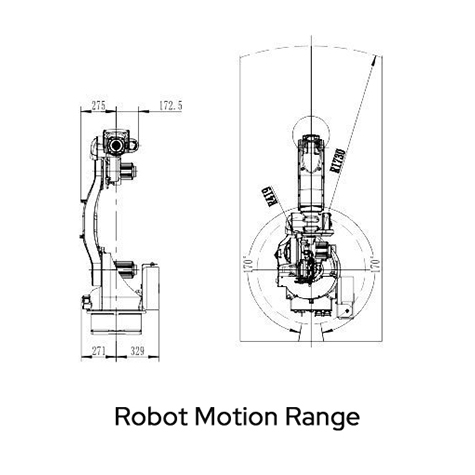

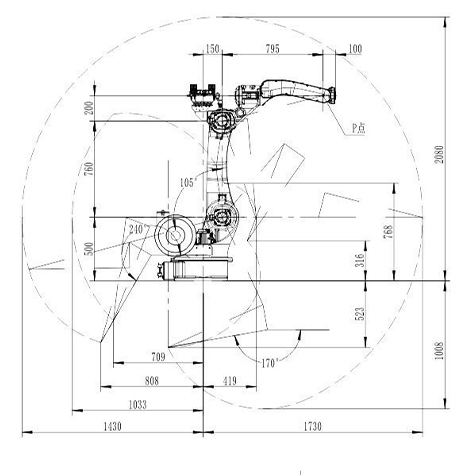

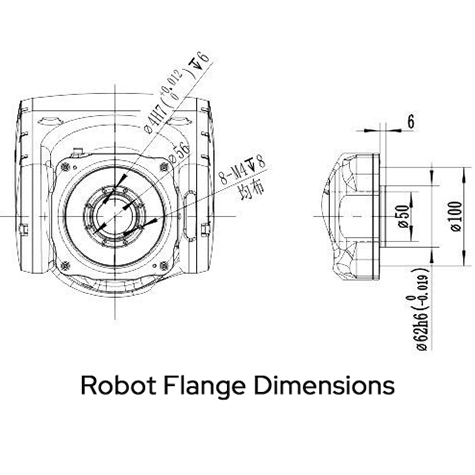

Installation Interface diagram
Our Advantages
3D Robotic Welding Cutting Machine – Key Advantages
These transformative benefits have made automated welding an indispensable cornerstone of modern manufacturing — driving efficiency, safety, and profitability across industries from automotive and aerospace to construction and beyond.

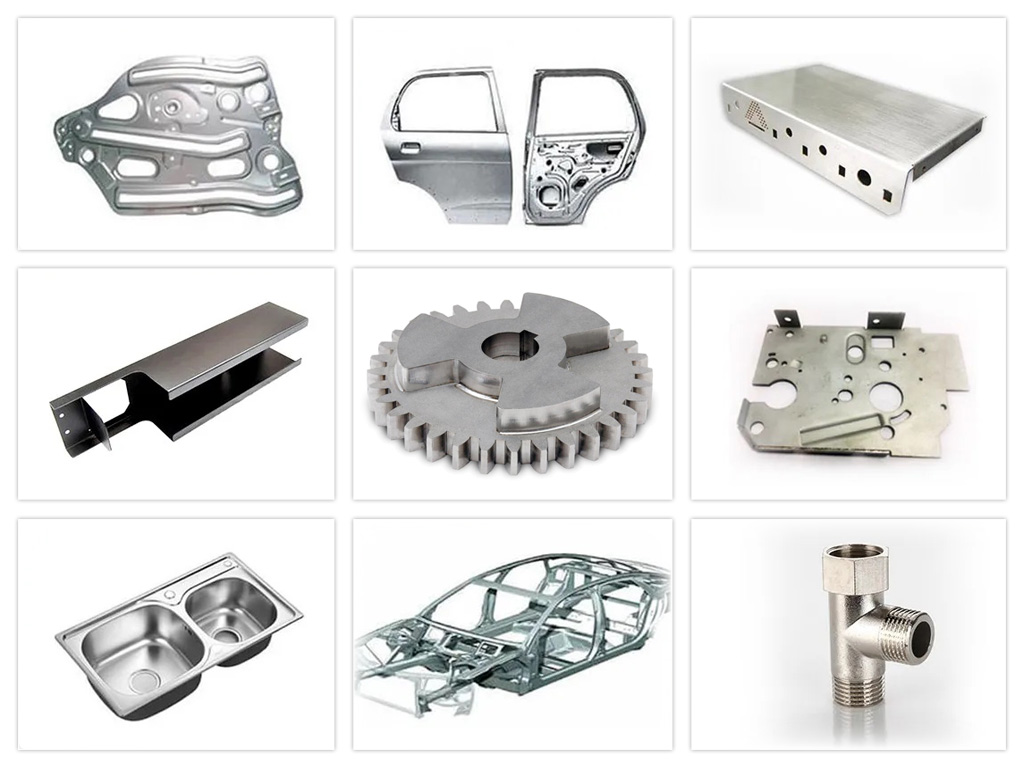

3D Robotic Welding Cutting Machine Application
FAQ
Choosing the right power supply for your welding application depends on three core pillars:
A: Workpiece specifics: Material thickness, alloy type, and the mechanical properties your welds need to deliver.
B: Process compatibility: The exact welding technique required to achieve consistent, high-quality results.
C: Cost alignment: Balancing upfront investment with long-term operational value to meet your budget and productivity targets.
Precise weld seam tracking is realized by integrating professional vision systems and high-precision sensing components. Servo-controlled robotic setups, alongside laser tracking solutions from Abicor Benzel and Wenglor, are prominent and reliable choices for this application.
Two prominent trends stand out: AI-powered intelligent path planning, which optimizes trajectories in real time based on workpiece variations, and the development of cost-effective laser welding systems that reduce entry barriers for high-precision applications.
If you want to know more info please contact us!
