Short Description
The 3015 laser cutting machine boasts outstanding adaptability—with precise adjustments of laser power and cutting speed to match various material thicknesses. It enables efficient, accurate processing of diverse metals, from thin sheets to thick plates, delivering high precision and smooth, clean edges.
Product Description
Fiber Laser Cutting Machine
SH is a professional Chinese supplier of fiber laser cutting machines. Engineered for industrial-grade performance, our equipment delivers superior precision and efficiency in sheet metal processing—perfect for workshops and factories. It cuts stainless steel, carbon steel, aluminum, copper, titanium, and other metals flawlessly. Powered by state-of-the-art fiber lasers and intelligent CNC systems, it transforms raw sheet metal into high-value parts, reducing waste and maximizing production efficiency.
Product Details
Technical Specifications
(Custom configurations available upon request.)
| SH Fiber Laser Cutting Machine | |||||
| Model | SH-S3015 | SH-S4020 | SH-S6015 | SH-S6020 | SH-S6025 |
| Working Area | 3000*1500 | 4000*2000 | 6000*1500 | 6000*2000 | 6000*2500 |
| Worktable Bearing Capacity | 1250kg | 1650kg | 2500kg | 2500kg | 3500kg |
| Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Repeat Positioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Acceleration | 1G-2.5G | 1G-2.5G | 1G-2.5G | 1G-2.5G | 1G-2.5G |
| Running Speed | 80-140m/min | 80-140m/min | 80-140m/min | 80-140m/min | 80-140m/min |
| Machine Bed | Plate welding bed | Plate welding bed | Plate welding bed | Plate welding bed | Plate welding bed |
| Laser Power | 1000W-30000W | ||||
| Cutting Thickness | 1–50mm (Depends on Material and Power) | ||||
| Optional Features | Voltage Regulator, Dust Collector, Air Compressor | ||||

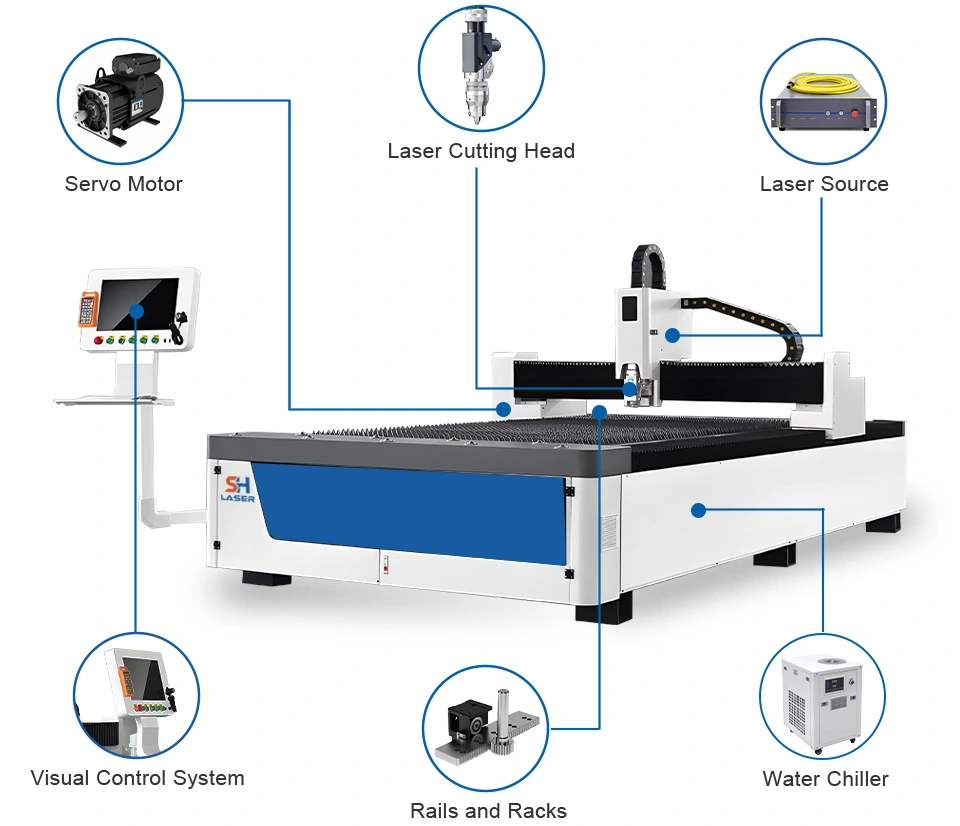

Our Advantages
Aircraft-grade aluminum beam
- This new generation of aviation aluminum beams is extruded with 4.000tons of pressure, achieving a beam strength of T6.
- It is light in weight, high in hardness and corrosion-resistant, and can greatly improve the operating speed and processing accuracy of the laser cutting machine.
Auto focus Laser Cutting Head
- The new cutting head boasts an advanced autofocus system auto-adjusting the focal point by material thickness, ensuring high cutting precision and efficiency. Paired with anti-collision protection and an efficient cooling system, it enhances stability and service life.
Servo Motor
- High Accuracy
- High-Speed Performance
- High Adaptability & Stability
- Fast Motor Dynamic Response (Ensuring Timeliness)
Mortise-and-tenon joint and welding bed
- The machine bed adopts a heavy-duty welded steel structure, treated with high-temperature annealing and vibration aging to maintain stability and resist deformation during long-term use. Its robust build ensures excellent support and stability in high-speed cutting, meeting high-precision processing requirements.
- Bed rigidity increased by 25% and structural strength increased by 15%,longer service life.
Cutting Samples
FAQ
Our standard product models have specifications for your reference. If your sheet material is not within this range, please contact us and we will find a suitable machine for you.
Cutting speed: 45 m/min with narrow kerf. Laser cutter positioning accuracy: 0.05mm, repeat positioning accuracy: 0.03mm. If you have higher requirements, please contact us and our engineers will solve them for you.
We offer 12months warranty on the entire machine. Under normal use, we will provide free repair or replacement for component failures caused by defects in materials or workmanship.
If you want to know more info please contact us!
