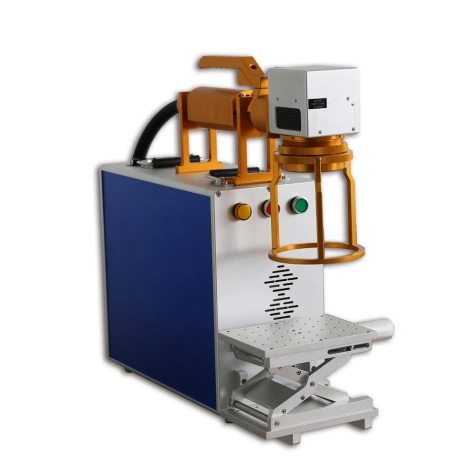

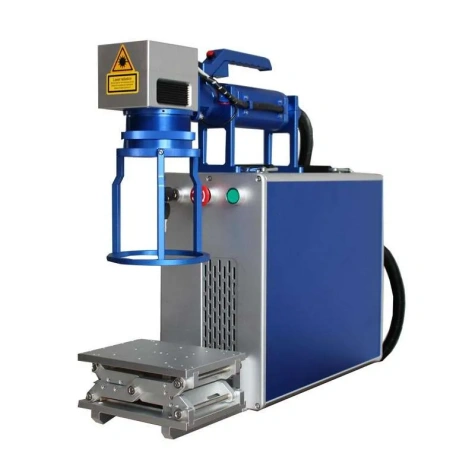

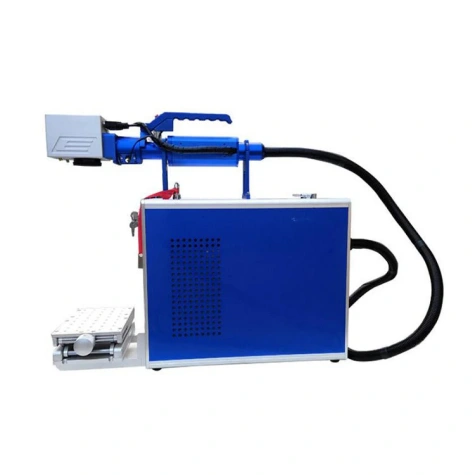

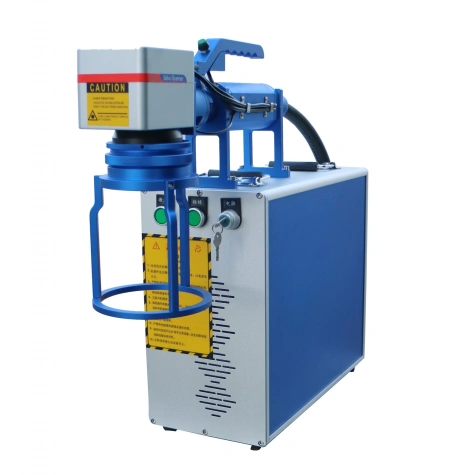

Mini Handheld 20W 50W 100W Fiber Laser Marking Machine Engraving Machine

Product Description

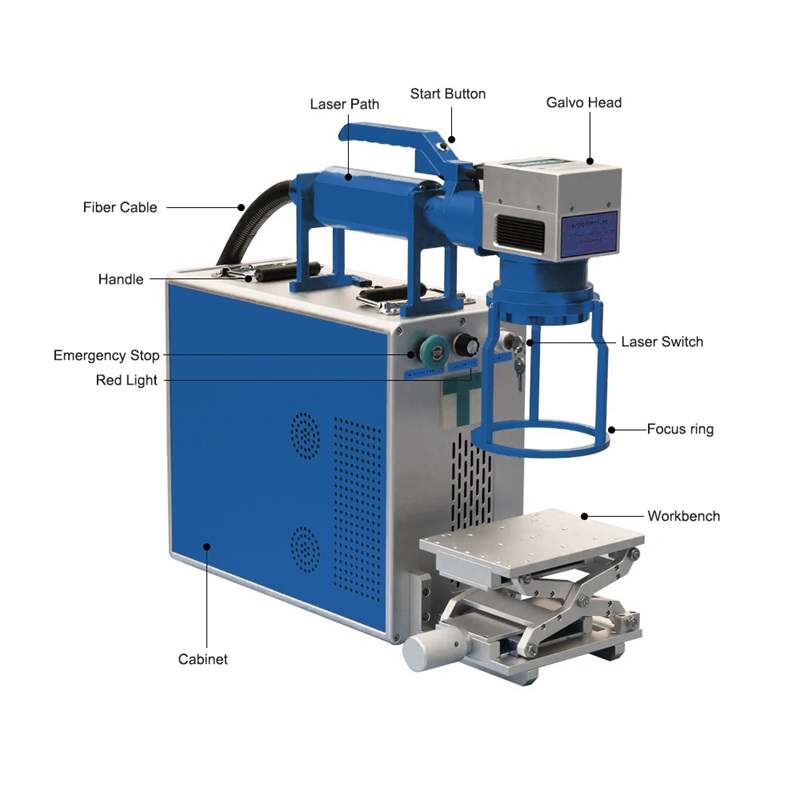

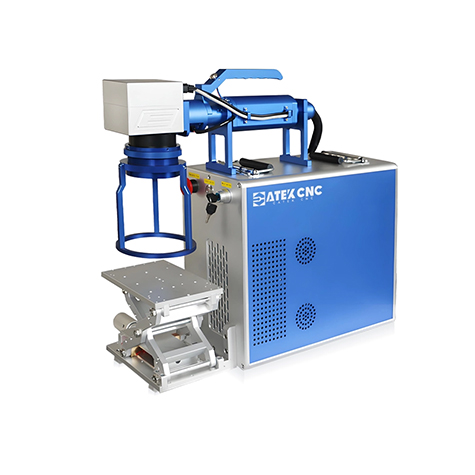

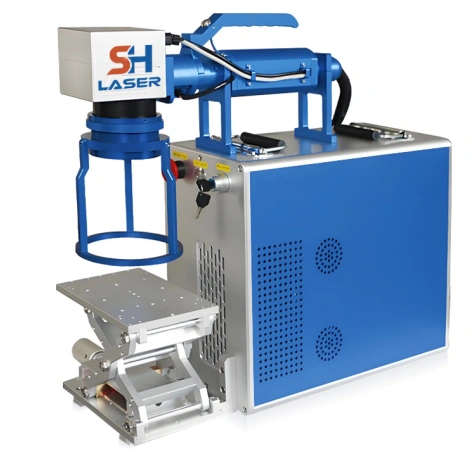

Handheld Laser Marking Machine

The handheld laser marking machine is a portable, efficient, and user-friendly device equipped with a high-performance fiber laser source (20W-100W), featuring an air-cooled, maintenance-free design (up to 100,000 hours service life) and a compact, lightweight handheld scan head that eliminates fixed-platform limitations—enabling flexible operation in tight spaces, on large/immovable workpieces, or oversized/irregularly shaped parts for on-site tasks requiring speed and precision. With built-in red light preview and autofocus for easy, accurate positioning (even for beginners), it delivers fast, high-contrast, permanent marking and engraving on a wide range of materials (stainless steel, carbon steel, aluminum, copper, gold, silver, plastic, etc.), offering low operating costs and excellent reliability for metal fabrication, automotive parts marking, tool identification, electronics manufacturing, jewelry engraving, and more.

Product Details

Fiber Laser Compatible Materials:

Metals: Stainless steel, carbon steel, anodized aluminum, aluminum alloy, aluminum, copper, iron, gold, silver, carbide, and other metal surfaces.

Plastics: Rigid plastics, PVC (actual testing recommended due to compositional differences).

Applications: Nameplates, metal/plastic parts, hardware, jewelry, painted/coated metals, glazed ceramics, Yixing teapots, lacquered paper boxes, melamine boards, mirror coatings, graphene, chip de-marking, beverage cans, formula tins, etc.

Technical Specifications

(Custom configurations available upon request.)

Product Name	SH-M20W / SH-M30W / SH-M50W / SH-M70W / SH-M100W
Laser Type	Fiber Laser (Raycus / JPT / MAX optional)
Laser Wavelength	1064nm
Marking Area	110×110mm, 150×150mm, 175×175mm, 200×200mm, 300×300mm (optional)
Marking Speed	≤ 8000mm/s
Marking Depth	≤ 0.4mm (depending on power and material)
Min. Line Width	0.01mm
Min. Character Size	0.15mm
Repetition Accuracy	±0.001mm
Cooling Method	Air Cooling
Control Software	EZCAD
Supported File Formats	PLT, BMP, DXF, JPG, PNG, TIF, AI, etc.
Working Voltage	Single phase 220V 50HZ
Optional Accessories	Rotary Device, 2D Work Table, Laptop, etc
Laser Module Lifespan	>100,000 hours

Customized Service

If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.

Our Advantages

Permanent & High-Quality Marking

Durable & Permanent: The marking is formed inside the material through physical or chemical changes, making it wear-resistant, corrosion-resistant, and non-removable. Its lifespan matches that of the product itself.
Ultra-High Precision: Capable of engraving extremely fine lines and micro-text (with precision up to 0.01mm). It enables clear marking of complex logos, QR codes, and serial numbers, enhancing product grade and traceability.

Powerful & Flexible Processing Capability

Wide Material Compatibility: Suitable for a vast range of materials including most metals (e.g., stainless steel, aluminum, copper), plastics, ceramics, coatings, and more.
Non-Contact & Non-Destructive: As a non-physical contact process, laser marking applies no mechanical stress or damage to precision, fragile, soft, or finished workpieces.

Highly Efficient & Cost-Effective Operation

High Speed & Efficiency: Computer-controlled, the marking process is typically completed within seconds. It is easy to integrate into automated production lines, significantly boosting overall production efficiency.

Intelligent Operation & Environmental Friendliness

Easy Operation & Maintenance: Software-controlled, allowing for highly flexible prototyping and pattern changes with simple daily maintenance.
Green & Clean Production: The process generates no chemical pollution, features low energy consumption, operates quietly, maintains a clean working environment, and meets modern environmental standards.

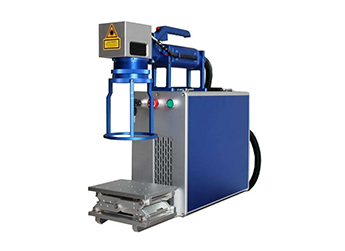

Marking Area

Marking area up to 30*30cm with a spot size of only 0.01mm.

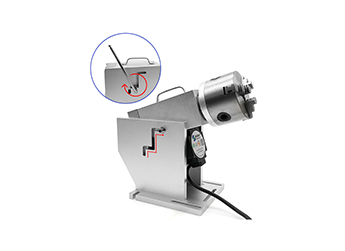

Optional Rotary Attachment

This accessory enables seamless, precise 360° marking on cylindrical and curved surfaces by automatically rotating workpieces during operation, making it ideal for industries requiring engraving on round or tubular metal components.

Integrated Smart Chip

Significantly improves marking accuracy
Delivers fast and stable operation
Enables an exceptionally smooth workflow experience

Intelligent Operating

Intelligent operating software supports multiple formats

FAQ

1. Can your machine mark my materials (stainless steel, aluminum, plastic, etc.)? Is the mark removable?

Our equipment offers excellent compatibility with metals (stainless steel, aluminum, copper, alloys) and most plastics and ceramics. The marking is permanent, as it’s formed by altering the material’s surface layer with the laser. It will not wear off or be removed by rubbing with alcohol under normal conditions.

2. What about marking precision and speed? Is it stable for long-term operation?

In terms of precision, our machine achieves high-precision marking, ensuring QR codes and micro-text are clear and readable. Speed depends on the content, but a standard logo or serial number is typically completed within 1-3 seconds. The system uses imported galvanometer scanners, premium laser sources, and features an intelligent temperature control system to guarantee stable output during continuous 8-hour operation.

3. Is the operation complicated? Is training required?

Operation is very straightforward. We provide illustrated manuals, and users can learn the basics within half a day. The software supports direct import of common file formats such as AutoCAD files.
