Product Description

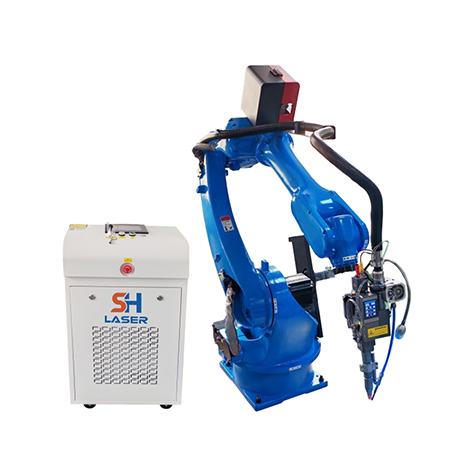

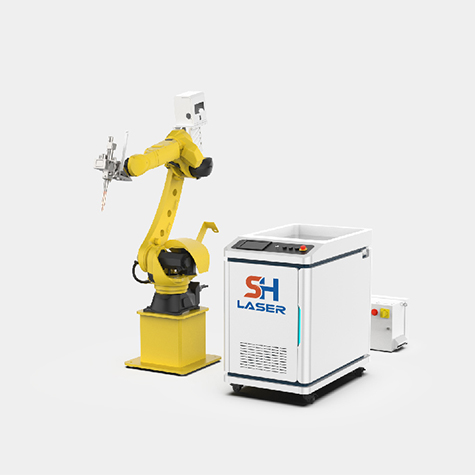

Robotic Fiber Laser Welding Cutting Machine
Transform your manufacturing efficiency with our Industrial 3D Robotic Fiber Laser Welding Machine! Engineered for non-stop 24/7 operation, it supercharges your production output while delivering consistently flawless welds with 90% seam uniformity. Slash labor costs, cut down on material waste, and tackle complex multi-angle welds with unrivaled flexibility—all powered by intelligent automation that works seamlessly with your workflow. Whether you’re producing stainless steel door and window hardware or other precision components, this machine ensures reliable, high-quality results that drive your bottom line.
Product Details
Technical Specifications
(Custom configurations available upon request.)
| MODEL | SH-W1500w | SH-W2000w | SH-W3000w |
| Laser Welding Thickness | Carbon steel: 4mm Stainless steel: 4mm Aluminum: 2mm | Carbon steel: 5mm Stainless steel: 5mm Aluminum: 3mm | Carbon steel: 8mm Stainless steel: 8mm Aluminum: 5mm |
| Laser Power | 1500W | 2000W | 3000W |
| Operational Voltage | Single Phase 220V 50/60HZ | Single Phase 220V 50/60HZ | Three Phase 380V 50/60HZ |
| Laser Wavelength | 1080nm | 1080nm | 1080nm |
| Fiber Cable Length | 10-20m | 10-20m | 10-20m |
| Maximum Welding Speed | 0.5-120mm/s | 0.5-120mm/s | 0.5-120mm/s |
| Max Load of Robot (kg) | 25 | 25 | 25 |
| Laser Welding Head | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar |
| Cooling System | Water cooling | Water cooling | Water cooling |
| Maximum Working Radius | 2010 | 2010 | 2010 |
| Robot Rated Power(KW) | 4.5 | 4.5 | 4.5 |
| Robot Body Weight(KG) | 170-260 | 170-260 | 170-260 |
| DOF | 6 Axis | 6 Axis | 6 Axis |
| Consumable Parts | 10 pcs nozzles, 10 pcs protective lenses | ||
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages
Robotic Laser Welding Machine – Key Advantages
No wire feeding is required for workpieces with small weld seams, directly cutting welding wire expenses.
The same workbench supports multiple product types, offering more production flexibility and higher overall efficiency.
Ultra-low welding distortion, with non-contact welding capability to further protect workpiece integrity.
Unmatched consistency in batch welding, enabling one-pass production that saves both labor and costs.
Eliminates complex wire-filling operations for a streamlined, user-friendly process.
Ideal for high-volume production of uniform, regular parts, while also supporting multi-variety manufacturing needs.
Robotic Laser Cutting Machine – Key Advantages
Short setup time, fast production launch, and agile adjustments for rapid response to orders.
Cuts the 3–6 month development cycle for new molds, significantly shortening time-to-market for new products.
Perfect for product development and small-to-medium batch production of multiple varieties, whereas traditional equipment only supports ultra-high-volume production of single SKUs.
FAQ
Robotic welding brings tangible advantages: boosted production efficiency, consistently uniform weld quality, lower labor-related costs, and seamless operation in hazardous working conditions.
This is accomplished by integrating intelligent sensor feedback systems, making dynamic real-time adjustments to welding process parameters, and optimizing the robot’s motion trajectories for the specific weld seam and workpiece.
Core safety measures include physical guarding, reliable emergency stop mechanisms, pre-operation risk assessments, and standardized operator training.
If you want to know more info please contact us!
