Short Description
This 1KW-3KW Handheld Laser Welder: High-efficiency, precision & energy-saving. Suitable for stainless steel, carbon steel, aluminum, copper, etc. Lightweight and user-friendly, it enables flexible operation—ideal for complex workpiece welding.
Product Description

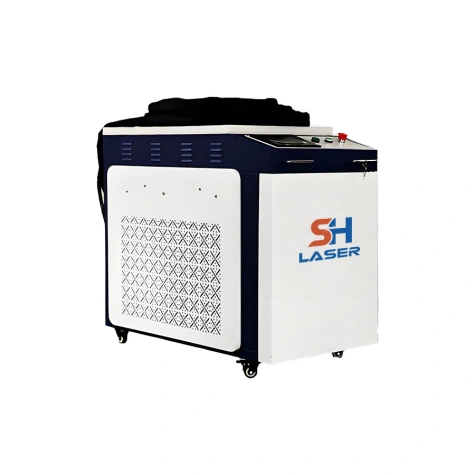

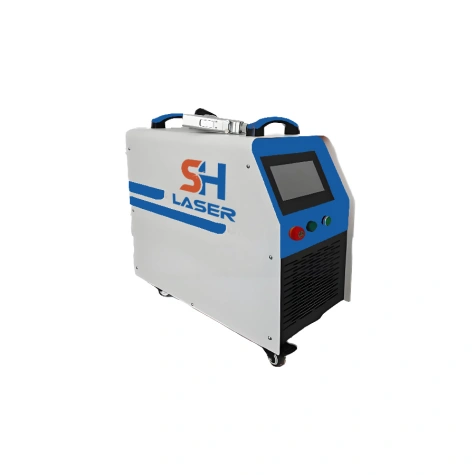

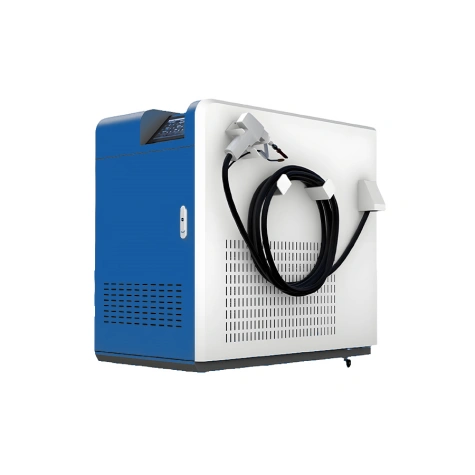

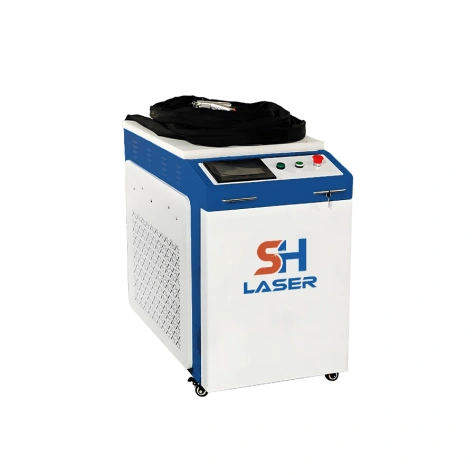

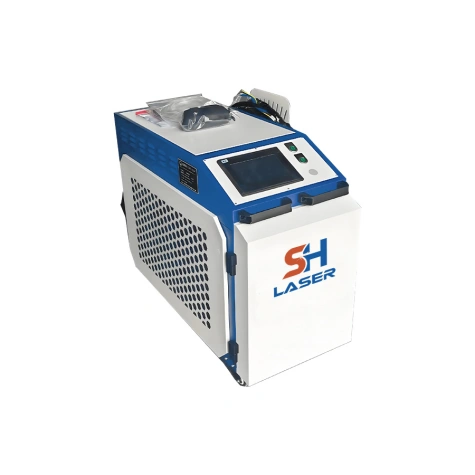

Laser Welding Machine
A highly efficient, versatile handheld laser welding machine—powered by advanced laser technology—delivers precise, smooth uniform welds with minimal heat-affected zones, low distortion, and reduced post-processing, featuring an ergonomic portable design for easy operation across diverse metal materials, workpiece shapes/sizes (including complex geometries and small-batch customization), and wide applications in automobile manufacturing, sheet metal processing, and home appliance repair/decoration as an ideal alternative to traditional welding.
Product Details
High-Quality Welding Head
Pure Copper Nozzle; Precision Red-Light Positioning; Impact & Slag Resistant;
Efficient Heat Dissipation; Stable Power Output.
Integrated Chiller System
Features an advanced; Dual-Temp & Dual-Control mode,utilizing separate independent systems to precisely manageboth high and low temperatures.
Automatic Wire Feeder
It provides fully automatic wire feeding with high precision and is compatible with welding wires ranging from 0.8 to 2.5 mm indiameter.
Intelligent Control System
Easy to use and learn Fast and efficient
Technical Specifications
(Custom configurations available upon request.)
| MODEL | SH-W1500w | SH-W2000w | SH-W3000w |
| Laser Welding Thickness | Carbon steel: 4mm Stainless steel: 4mm Aluminum: 2mm | Carbon steel: 5mm Stainless steel: 5mm Aluminum: 3mm | Carbon steel: 8mm Stainless steel: 8mm Aluminum: 5mm |
| Laser Power | 1500W | 2000W | 3000W |
| Operational Voltage | Single Phase 220V 50/60HZ | Single Phase 220V 50/60HZ | Three Phase 380V 50/60HZ |
| Laser Wavelength | 1080nm | 1080nm | 1080nm |
| Fiber Cable Length | 10-20m | 10-20m | 10-20m |
| Maximum Welding Speed | 0.5-120mm/s | 0.5-120mm/s | 0.5-120mm/s |
| Operating System | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar |
| Laser Welding Head | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar |
| Cooling System | Water cooling | Water cooling | Water cooling |
| Working Environment Temperature Range | 10-40℃ | 10-40℃ | 10-40℃ |
| Automatic Wire Feeder | √ | √ | √ |
| Laser Welding Machine Dimensions | 570*250*400mm | 570*250*400mm | 570*250*400mm |
| Laser Welder Machine Weight | 180KG | 180KG | 180KG |
| Laser Welding Gun Weight | 0.75kg | 0.75kg | 0.75kg |
| Consumable Parts | 10 pcs nozzles, 10 pcs protective lenses | ||
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages
Deep penetration
It provides up to 8mm of penetration, ensuring a more robust weld.
High-temperature welding
High-temperature welded products do not deform.
Perfect Welds
Perfect seams, zero extra cost.
Works on all types of metal
One-side weld, perfect two-side finish
1000w
- Stainless Steel: 2.5 mm
- Mild Steel: 2.5 mm
- Aluminum: 2.0 mm
- Galvanized Steel: 2.5 mm
1500w
- Mild Steel: 4 mm
- Aluminum: 3 mm
- Stainless Steel: 4 mm
- Galvanized Steel: 3 mm
2000W
- Mild Steel: 6 mm
- Aluminum: 5 mm
- Stainless Steel: 6 mm
- Galvanized Steel: 5 mm
3000W
- Mild Steel: 8 mm
- Aluminum: 6 mm
- Stainless Steel: 8 mm
- Galvanized Steel: 6 mm
5 in 1 Laser Welding Machine
5 in 1 Laser welding machine with welding, cutting and cleaning functions.
FAQ
Common causes include: unclean material surface (such as oil stains or vaporization of galvanized layers), or the molten pool cooling too rapidly during welding, preventing trapped gas from escaping in time.
Excessive spatter is typically caused by overly high energy input or contaminants on the material surface (such as oil stains or zinc layers). Solutions include appropriately reducing laser power, ensuring workpiece cleanliness, and optimizing shielding gas parameters.
Lens Cleaning & Inspection: Regularly check whether optical components like the protective lens are clean or damaged.
Cooling System: Ensure the water chiller is functioning properly.
If you want to know more info please contact us!
