Short Description

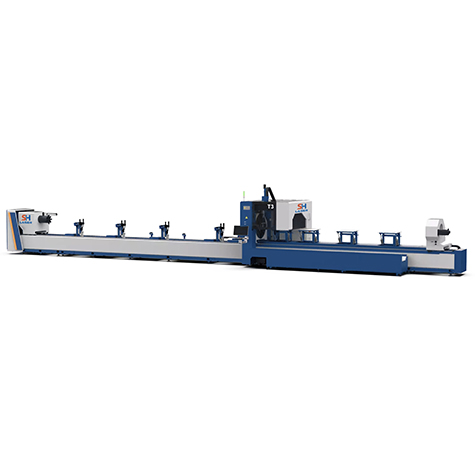

The High-Precision Three-Chuck Tube Laser Cutting Machine features a three-chuck design that firmly clamps tubes, ensuring exceptional cutting precision and consistency. Suitable for various metal tubes, it’s easy to operate with stable performance, boosting your tube fabrication efficiency.
Product Description

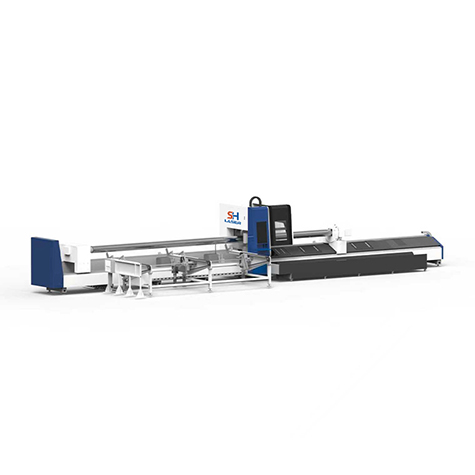

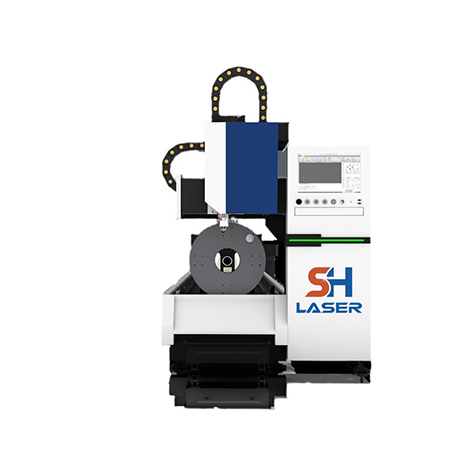

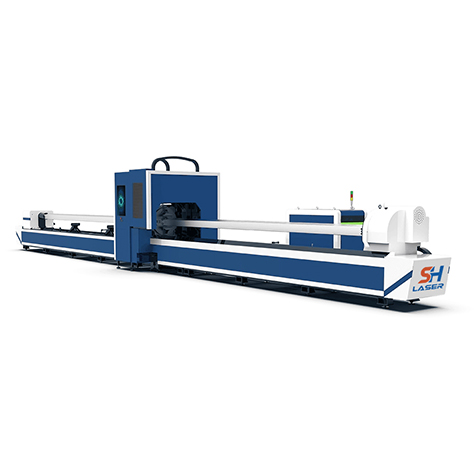

Tube Metal Laser Cutting Machine
The laser tube cutting machine is an advanced, durable solution engineered for processing diverse metal tubes—including carbon steel, stainless steel, aluminum, and custom profiles like rectangular, square, round tubes and I-beams—boasting ultra-precise performance with minimal kerf and ±0.05mm accuracy to deliver burr-free edges, low material waste, and consistent results even in harsh industrial settings; its integrated intelligent software automates cutting path generation, optimizes sequences, slashes processing time and boosts material utilization, making it an indispensable, high-efficiency asset for automotive manufacturing, aerospace, and metal fabrication industries.
Product Details
Technical Specifications
(Custom configurations available upon request.)
| Model | SH-T6020 | SH-T12035 |
| Max. Processing Tube Length | 6300mm | 12500mm |
| Cutting Diameter | 20-240mm | 20-350mm |
| Maximum Tube Weight | 300kg | 900kg |
| Positioning Accuracy | ±0.05mm/m | ±0.05mm/m |
| Repositioning Accuracy | ±0.03mm/m | ±0.03mm/m |
| Max. Chuck Rotating Speed | 120r/min | 80r/min |
| Y Axis Maximum Speed | 110m/min | 80m/min |
| X Axis Maximum Acceleration | 1.5G | 0.8G |
| Dimensions | 16800*2730*2300mm | 22780*2900*2460mm |
| Laser Power Range | 1000W-12000W | 1000W-12000W |
| Supported Materials | Carbon Steel, Stainless Steel, Aluminum | Carbon Steel, Stainless Steel, Aluminum |
| Operating Voltage | 380V/50Hz | 380V/50Hz |
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages
With independent innovative design, the reciprocating feeding system enables seamless splicing and cutting of graphics that exceed the effective travel length.
Remote Upgradeability: Receive the latest features and improvements over the air.
Remote Diagnostics: Enable rapid fault identification and troubleshooting from afar.

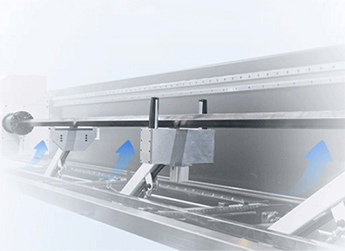

Following support
Standard servo-driven following support function provides real-time contour tracking duringprocessing,ensuring optimal tube machining accuracy and stability.

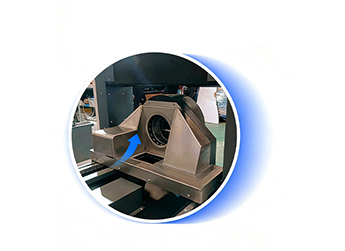

Large Material Capacity & Automated Processing
This system features a large pass-through diameter with a 240mm circumscribed circle. lt isnot limited by the length of the pipe or tube. Simply import a 3D model, and the system wilautomatically identify the cutting path to perform precise, high-speed machining.

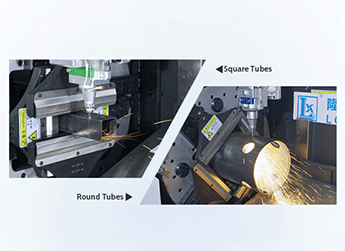

Cutting Demonstration
Cutting Range(mm):Ф20-350 20×20-350×350

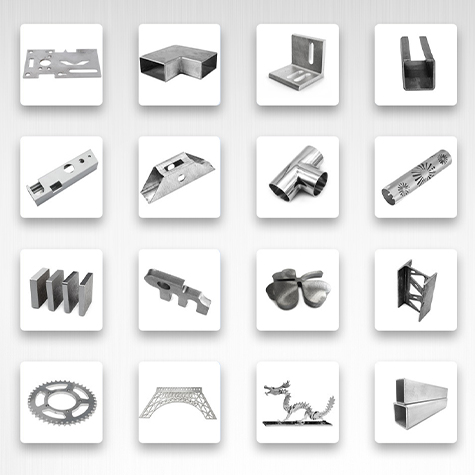

Cutting Samples
FAQ
Our standard product models have specifications for your reference. If your material is not within this range, please contact us and we will find a suitable machine for you.
We ensure precision through a rigid mechanical structure, a servo-driven following support system (prevents sagging), and an automatic focus tracking system. Regarding burrs: the key lies in optimal cutting gas purity and pressure settings. Our built-in process database automatically matches the best parameters for different materials, ensuring smooth, vertical cuts with minimal dross.If you have higher requirements, please contact us and our engineers will solve them for you.
The speed is highly efficient. For example, cutting a 3mm stainless steel round tube can reach speeds of several meters per minute. For convenience, we offer optional automatic feeding racks and finished-part sorting racks, which significantly reduce manual handling and enable continuous, unattended production.
