Short Description

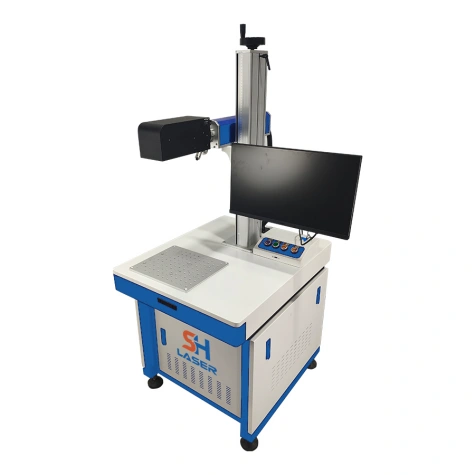

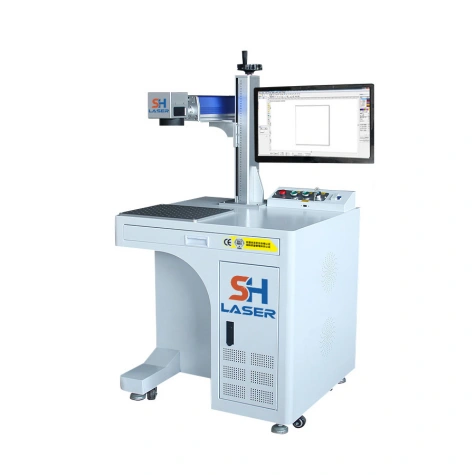

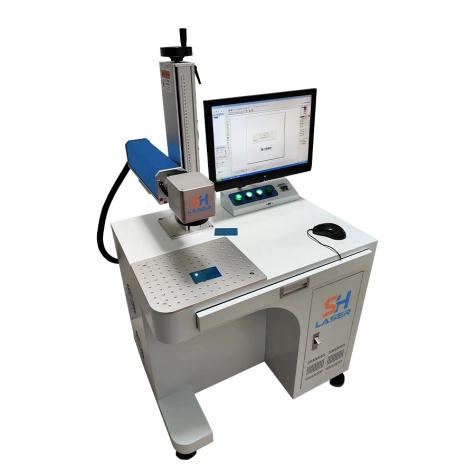

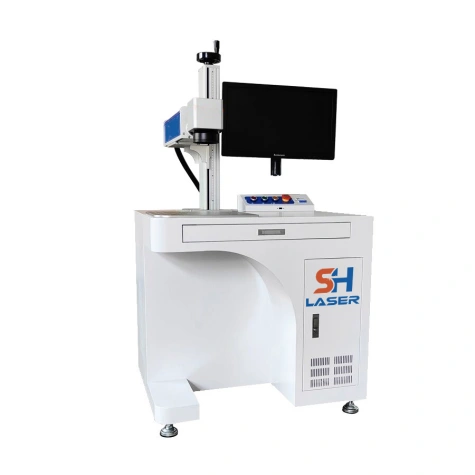

The desktop fiber laser marking machine offers reliable, high-precision permanent metal marking. Its compact enclosed structure ensures operator safety and saves space—featuring a high-speed galvo scanner and premium fiber laser source, it creates crisp, durable marks with exceptional consistency. Multiple power configurations adapt seamlessly to diverse marking depths and production needs.
Product Description

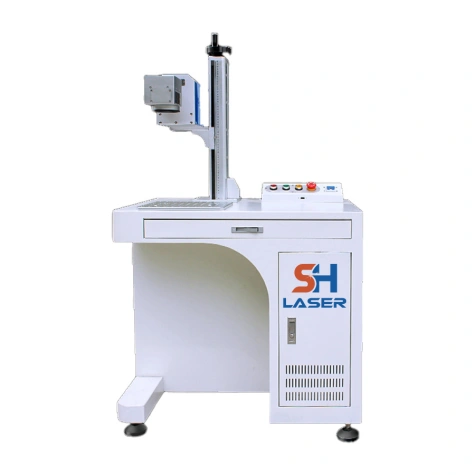

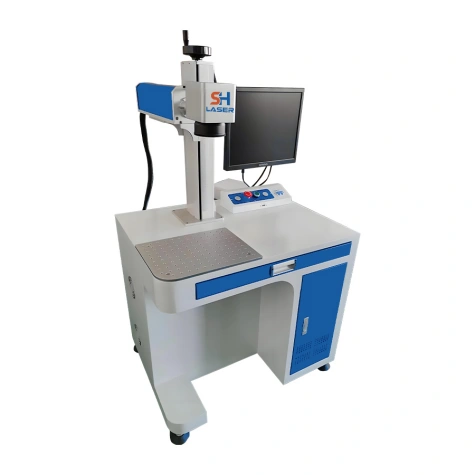

Laser Marking Machine
Our desktop laser marker is the smart solution for precision marking in labs, workshops, and small-batch production. With its compact footprint and integrated design, it delivers industrial-grade marking quality right on your workbench. It features a user-friendly software interface for easy operation and supports a wide range of materials including metals, plastics, and ceramics. Perfect for creating permanent serial numbers, logos, QR codes, and decorative engraving with high detail and efficiency. Ideal for prototyping, light industrial use, electronics, jewelry, and promotional items.

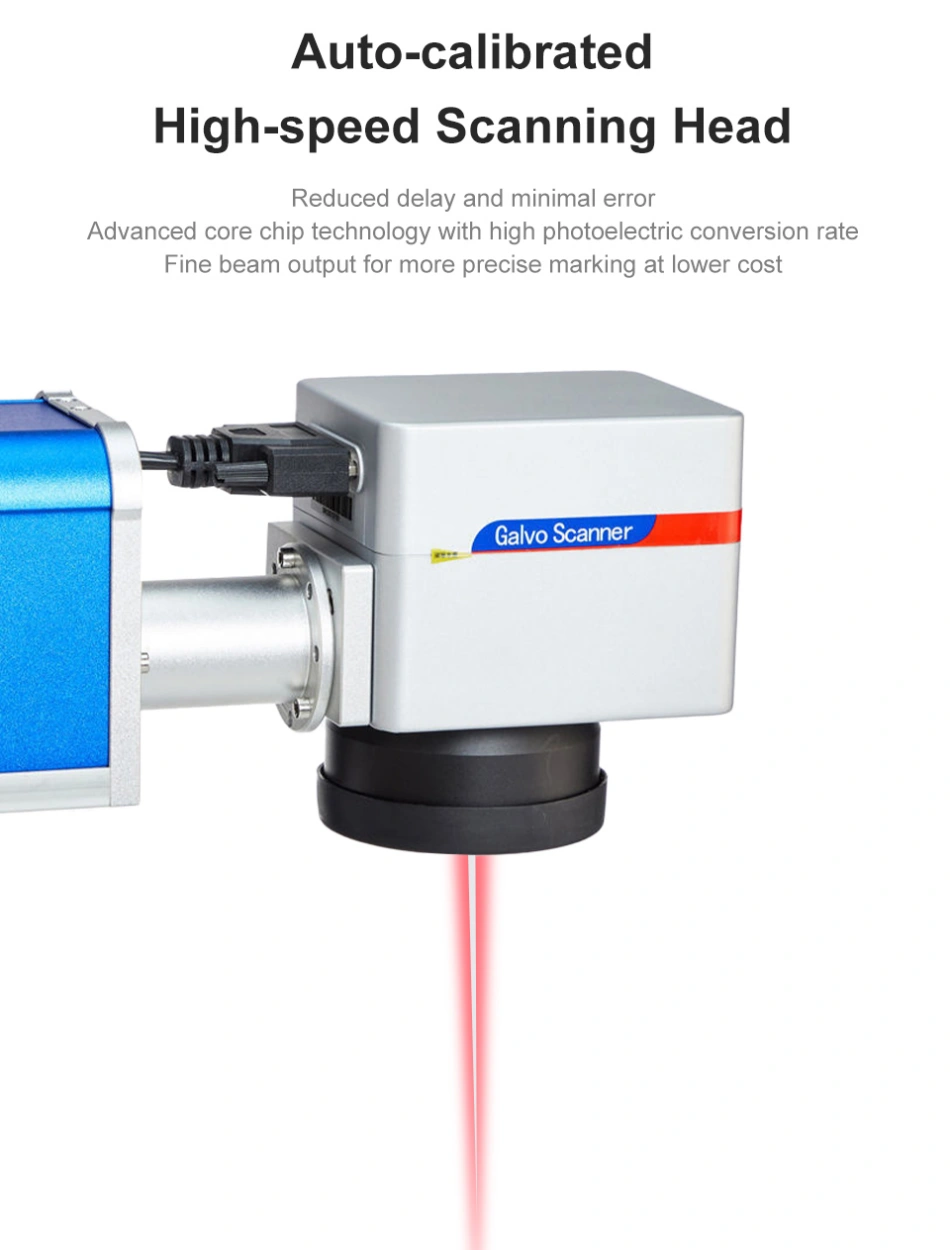

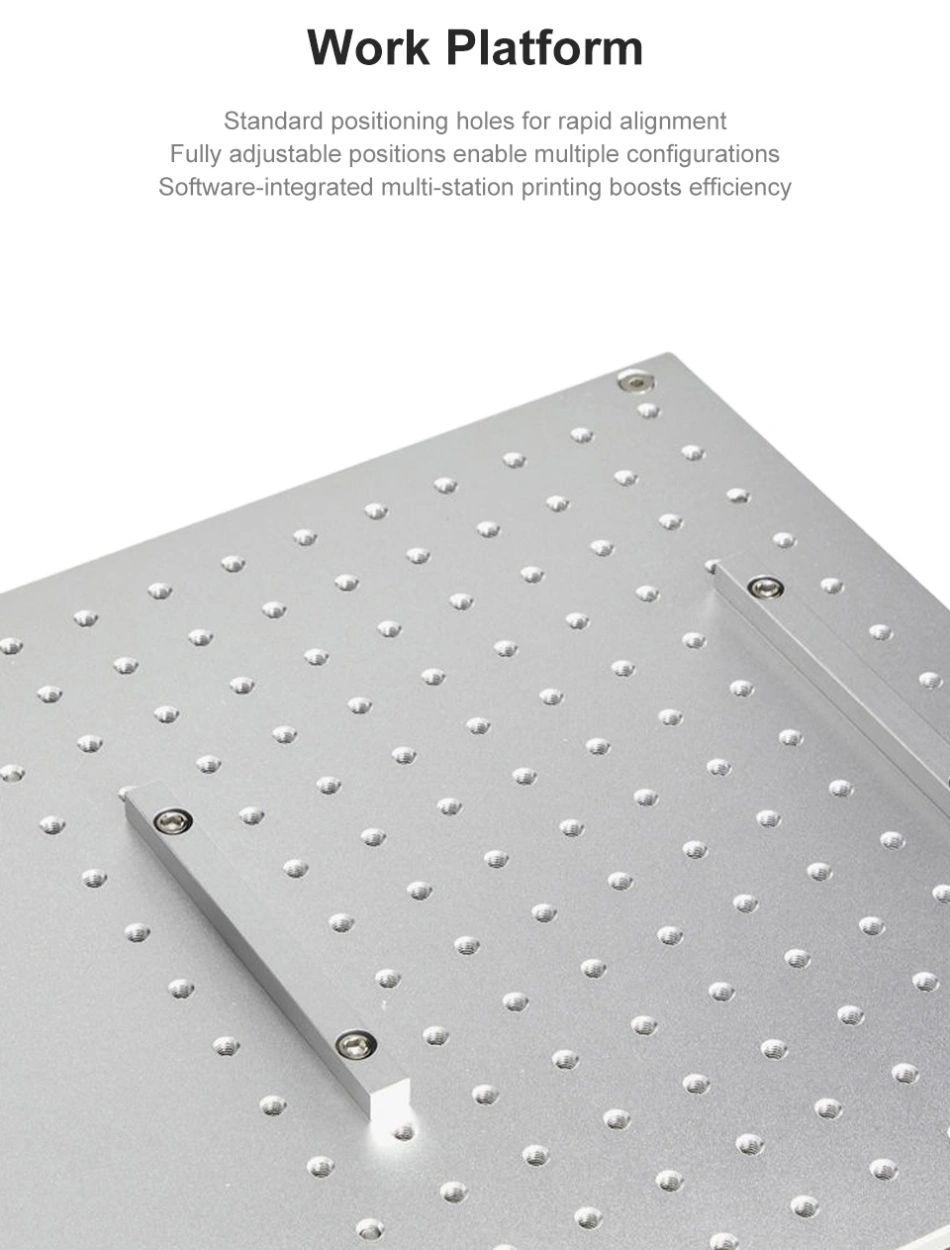

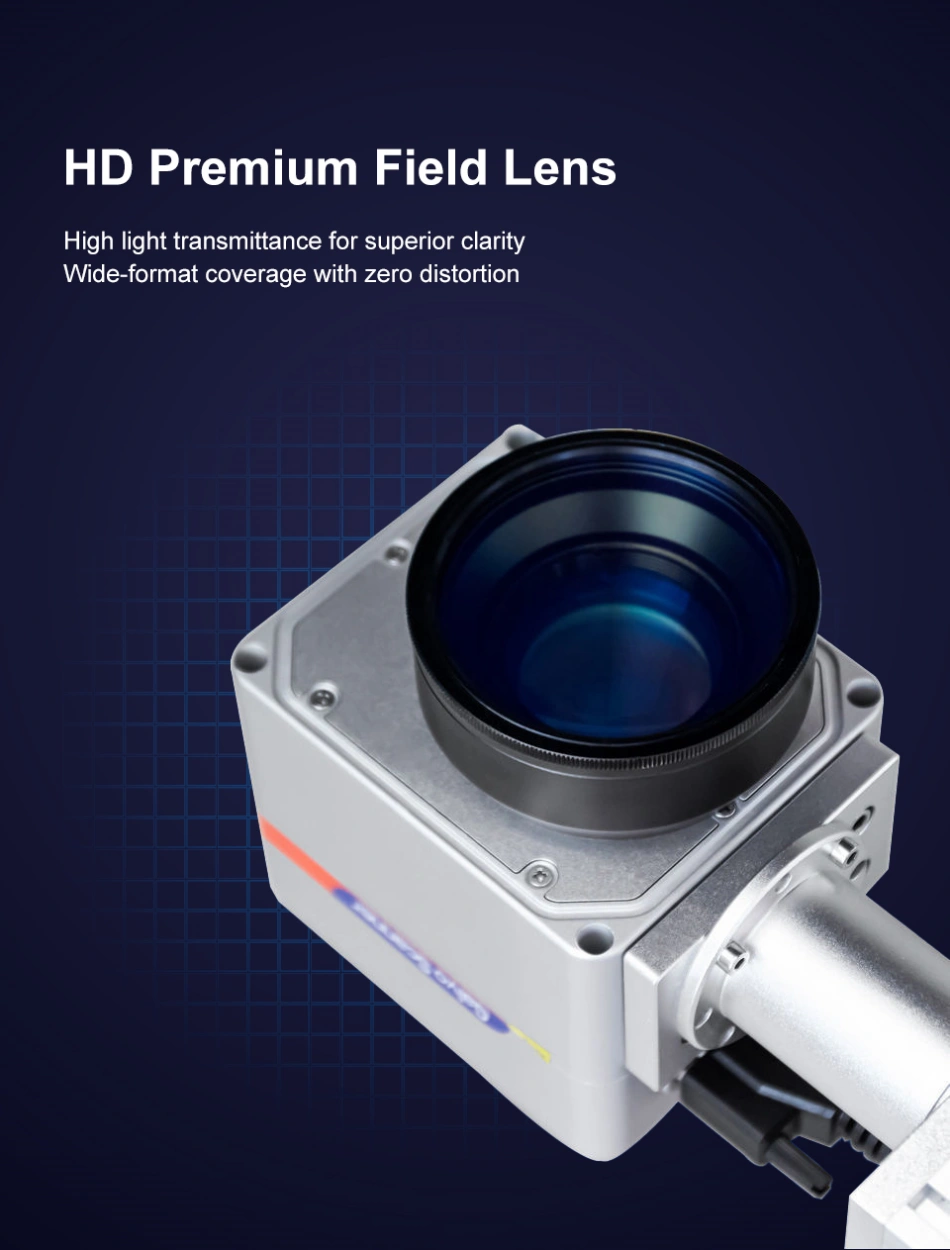

Product Details
Technical Specifications
(Custom configurations available upon request.)
| Product Name | SH-M20W / SH-M30W / SH-M50W |

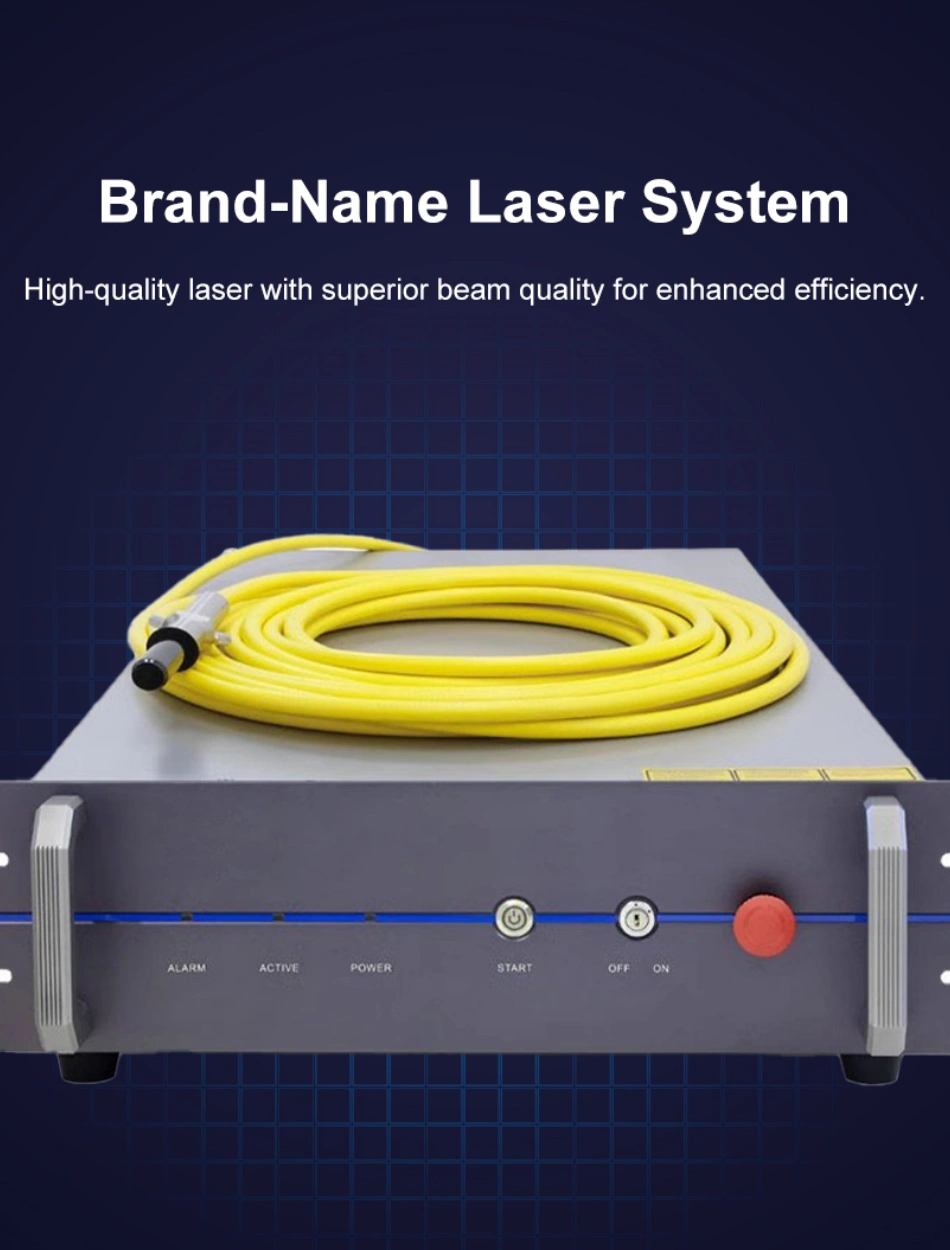

| Laser Type | Fiber Laser (Raycus / JPT / MAX optional) |
| Laser Wavelength | 1064nm |
| Marking Area | 110×110mm, 150×150mm, 175×175mm, 200×200mm, 300×300mm (optional) |
| Marking Speed | ≤ 8000mm/s |
| Marking Depth | ≤ 0.4mm (depending on power and material) |
| Min. Line Width | 0.01mm |
| Min. Character Size | 0.15mm |
| Repetition Accuracy | ±0.001mm |
| Cooling Method | Air Cooling |
| Control Software | EZCAD |
| Supported File Formats | PLT, BMP, DXF, JPG, PNG, TIF, AI, etc. |
| Working Voltage | Single phase 220V 50HZ |
| Optional Accessories | Rotary Device, Safety Enclosure, 2D Work Table, etc |
| Laser Module Lifespan | >100,000 hours |
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages
Ultra-High Precision: Capable of engraving extremely fine lines and micro-text (with precision up to 0.01mm). It enables clear marking of complex logos, QR codes, and serial numbers, enhancing product grade and traceability.
Non-Contact & Non-Destructive: As a non-physical contact process, laser marking applies no mechanical stress or damage to precision, fragile, soft, or finished workpieces.
Green & Clean Production: The process generates no chemical pollution, features low energy consumption, operates quietly, maintains a clean working environment, and meets
modern environmental standards.

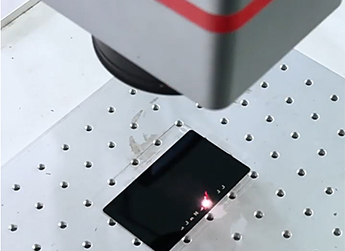

Stable Performance, No Consumables
- 3000 characters/second marking speed
- Precision up to 3μm
- High cost-effectiveness
- Energy consumption: 0.5 kWh/hour
- Operating cost: ≈ $0.063 per hour
- Long service life
Integrated Smart Chip
- Significantly improves marking accuracy
- Delivers fast and stable operation
- Enables an exceptionally smooth workflow experience
Intelligent Operating
Intelligent operating software supports multiple formats

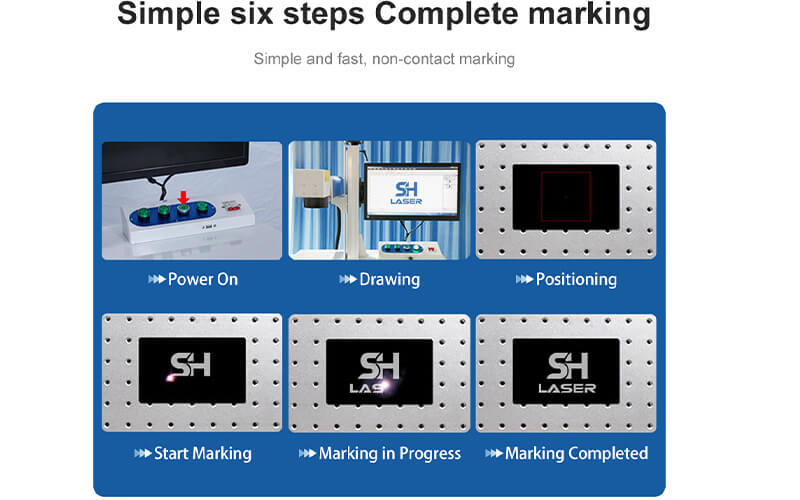

Marking Process
Fiber Laser Compatible Materials
Metals: Stainless steel, carbon steel, anodized aluminum, aluminum alloy, aluminum, copper, iron, gold, silver, carbide, and other metal surfaces.
Plastics: Rigid plastics, PVC (actual testing recommended due to compositional differences).
Applications: Nameplates, metal/plastic parts, hardware, jewelry, painted/coated metals, glazed ceramics, Yixing teapots, lacquered paper boxes, melamine boards, mirror coatings, graphene, chip de-marking, beverage cans, formula tins, etc.
Application Materials
FAQ
Our equipment offers excellent compatibility with metals (stainless steel, aluminum, copper, alloys) and most plastics and ceramics. The marking is permanent, as it’s formed by altering the material’s surface layer with the laser. It will not wear off or be removed by rubbing with alcohol under normal conditions.
In terms of precision, our machine achieves high-precision marking, ensuring QR codes and micro-text are clear and readable. Speed depends on the content, but a standard logo or serial number is typically completed within 1-3 seconds. The system uses imported galvanometer scanners, premium laser sources, and features an intelligent temperature control system to guarantee stable output during continuous 8-hour operation.
Operation is very straightforward. We provide illustrated manuals, and users can learn the basics within half a day. The software supports direct import of common file formats such as AutoCAD files.
