Short Description
The 12kg (with battery) backpack pulse laser cleaner boasts portability and precision, featuring a <0.75kg lightweight laser head for easy use. Its compact design, advanced pulse laser tech, and long battery life deliver efficient, versatile cleaning anytime, anywhere.
Product Description

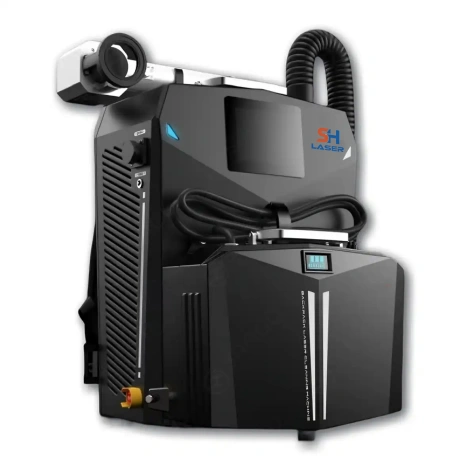

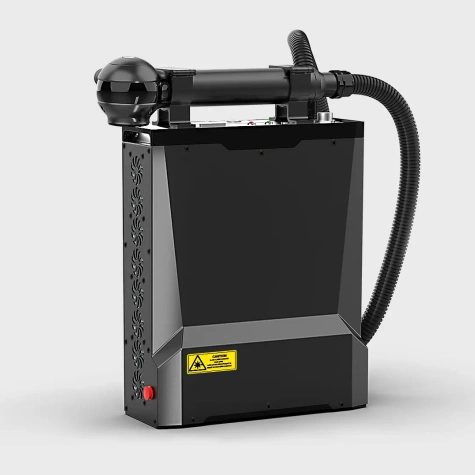

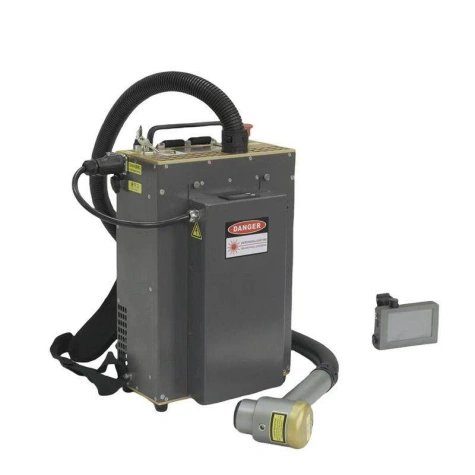

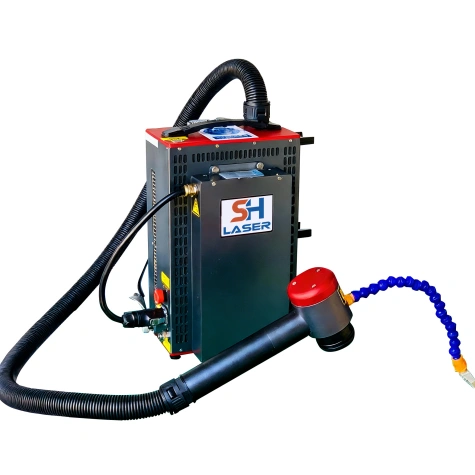

Backpack-Style Portable Laser Cleaning Machine
This compact, lightweight and portable backpack laser cleaning machine features an integrated control system and handheld laser head for easy, comfortable operation, offers dual working modes (rechargeable battery with over 1.5 hours of full-power runtime/external power supply), and is ideal for outdoor use—effectively removing rust and contaminants from various metal surfaces (steel, aluminum alloy, copper, magnesium, zinc, stainless steel, etc.), complex structures (pipes, wheels, bridges, building exteriors) and even delicate items (sculptures, cultural relics, ancient buildings).
Product Details
Technical Specifications
(Custom configurations available upon request.)
| Specification | SH-C100W | SH-C200W | SH-C300W |
| Laser Operation Mode | Pulsed | Pulsed | Pulsed |
| Pulse Width | 150-190ns | 13-500ns | 13-500ns |
| Max Single Pulse Energy | 1.7mJ | 2mJ-5mJ | 5mJ-15mJ |
| Total Power Consumption | ≤600W | ≤800W | ≤1100W |
| Fiber Length | 1.5m | 1.5m | 1.5m |
| Cooling Method | Air Cooling | Air Cooling | Air Cooling |
| Scanning Range | 0-100mm | 0-145mm | 0-145mm |
| Main Unit Dimensions (L*W*H) | 213*168*339mm | 268*192*445mm | 268*192*445mm |
| Packed Dimensions (L*W*H) | 860*840*340mm | 860*840*340mm | 860*840*340mm |
| Main Unit Weight | 12Kg | 17Kg | 18.08Kg |
| Cleaning Head Weight | <0.75Kg | <0.75Kg | <0.75Kg |
| Field Lens Focal Length | Optional: 160mm / 210mm / 254mm / 330mm / 420mm | ||
| Operation Mode | Handheld | ||
| Control Method | Wireless Control Screen | ||
| Applications | Urban graffiti cleaning, weld seam cleaning, high-altitude operations, locations without power supply, and other confined spaces. | ||
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages
Multiple safeguards prevent accidental laser activation
Ensures complete operator protection
Field-replaceable focusing lens
Real-time internal temperature monitoring
Prevents damage to lenses and gun body
Compatible with wide-area cleaning and high-energy density modes
Fast processing speeds reduce labor and time requirements

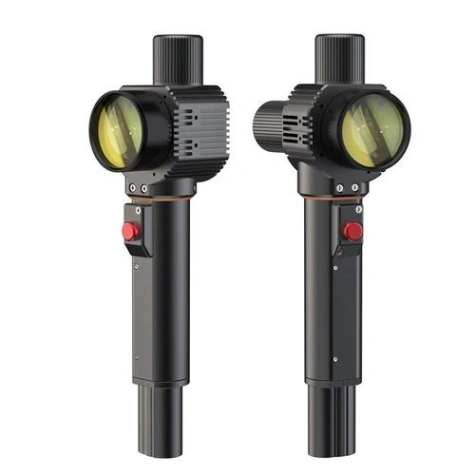

Brand Cleaning Gun Head
Flexible cleaning angles, adjustable scanning width, multiple patented designs, industry-leading.
Control Screen
Supports multiple languages(Chinese, English, Russian, Japanese, Spanish, German, Korean, French, Polish and more). Switch easily via the interface; custom language services available for global users.
Cleaning Coverage
Linear cleaning path ensures complete surface coverage without dead zones
Cleaning Width
50% wider cleaning area compared to previous generation
Adjustable cleaning range: 10-300mm
Working Distance
800mm operating distance significantly improves accessibility and safety
FAQ

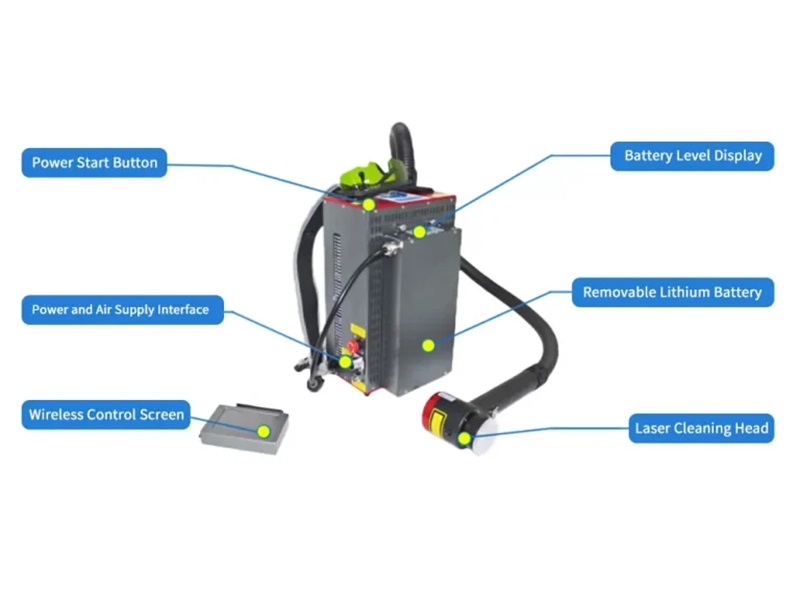

Its key features include a compact backpack design, detachable lithium battery, lightweight cleaning head (<0.75kg), and wireless control – enabling portable, flexible operation.
It delivers exceptional results on metal, stone, concrete, and painted surfaces, ideal for rust removal, paint stripping, graffiti cleaning, and weld seam cleaning.
The detachable lithium battery offers extended runtime (several hours, depending on power settings and application intensity) for uninterrupted cleaning. It’s also designed for quick, hassle-free replacement to keep operations running without delays.
Absolutely. The detachable lithium battery supports cordless operation, making it perfect for outdoor and remote areas with no power access.
