Product Description

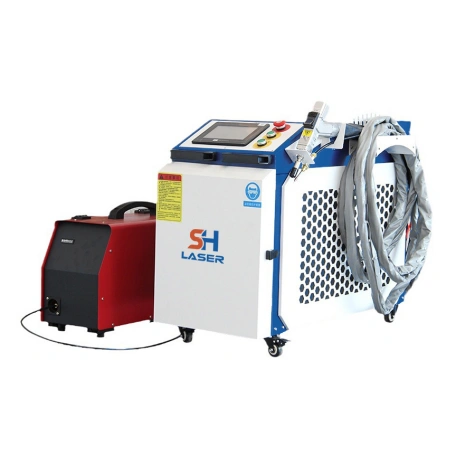

5 In 1Laser Welding Machine

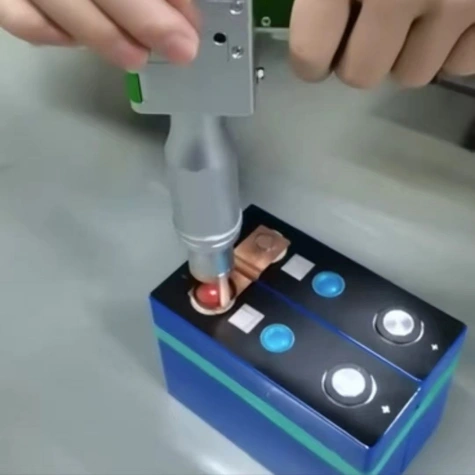

The 5-in-1 handheld laser welding machine integrates laser welding, cutting, cleaning, weld bead cleaning, and energy storage welding in a compact, It enables non-destructive welding with an ultra-small heat-affected zone, preventing battery core damage and deformation for enhanced durability and safety. The system delivers consistent, uniform weld joints with identical size, depth, and penetration for reliable, professional results, and offers broad material compatibility to weld copper, aluminum, and copper-aluminum composite sheets all in one solution.
Product Details

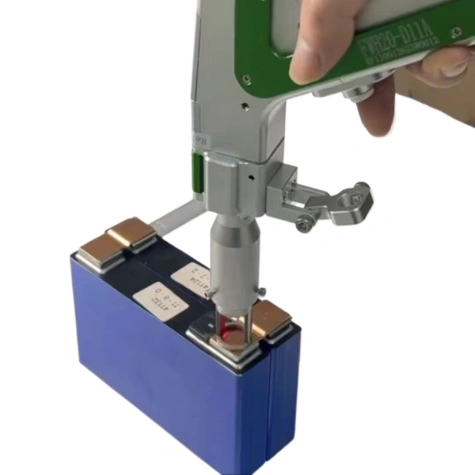

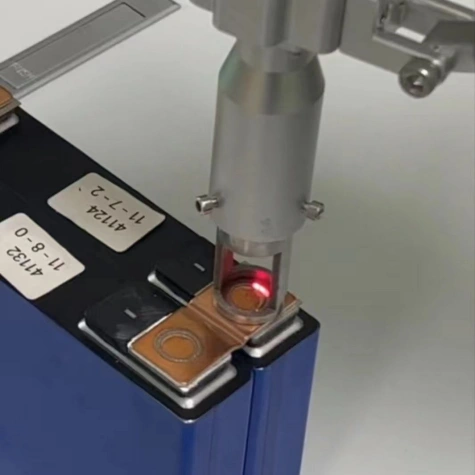

High-Quality Welding Head
Pure Copper Nozzle; Precision Red-Light Positioning; Impact & Slag Resistant;
Efficient Heat Dissipation; Stable Power Output.
Integrated Chiller System
Features an advanced; Dual-Temp & Dual-Control mode,utilizing separate independent systems to precisely manageboth high and low temperatures.
Automatic Wire Feeder
It provides fully automatic wire feeding with high precision and is compatible with welding wires ranging from 0.8 to 2.5 mm indiameter.
Intelligent Control System
Easy to use and learn Fast and efficient
Technical Specifications
(Custom configurations available upon request.)
| MODEL | SH-W1500 | SH-W2000 | SH-W3000 |
| Laser Welding Thickness | Carbon steel: 4mm Stainless steel: 4mm Aluminum: 2mm | Carbon steel: 5mm Stainless steel: 5mm Aluminum: 3mm | Carbon steel: 8mm Stainless steel: 8mm Aluminum: 5mm |
| Laser Power | 1500W | 2000W | 3000W |
| Operational Voltage | Single Phase 220V 50/60HZ | Single Phase 220V 50/60HZ | Three Phase 380V 50/60HZ |
| Laser Wavelength | 1080nm | 1080nm | 1080nm |
| Fiber Cable Length | 10-20m | 10-20m | 10-20m |
| Maximum Welding Speed | 0.5-120mm/s | 0.5-120mm/s | 0.5-120mm/s |
| Operating System | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar |
| Laser Welding Head | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar |
| Cooling System | Water cooling | Water cooling | Water cooling |
| Working Environment Temperature Range | 10-40℃ | 10-40℃ | 10-40℃ |
| Automatic Wire Feeder | √ | √ | √ |
| Laser Welding Machine Dimensions | 1230*650*1080mm | 1230*650*1080mm | 1230*650*1080mm |
| Laser Welder Machine Weight | 200KG | 200KG | 200KG |
| Laser Welding Gun Weight | 0.75kg | 0.75kg | 0.75kg |
| Consumable Parts | 10 pcs nozzles, 10 pcs protective lenses | ||
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages
Deep penetration
It provides up to 8mm of penetration, ensuring a more robust weld.
High-temperature welding
High-temperature welded products do not deform.
Perfect Welds
Perfect seams, zero extra cost.
Works on all types of metal
One-side weld, perfect two-side finish
1000w
- Stainless Steel: 2.5 mm
- Mild Steel: 2.5 mm
- Aluminum: 2.0 mm
- Galvanized Steel: 2.5 mm
1500w
- Mild Steel: 4 mm
- Aluminum: 3 mm
- Stainless Steel: 4 mm
- Galvanized Steel: 3 mm
2000W
- Mild Steel: 6 mm
- Aluminum: 5 mm
- Stainless Steel: 6 mm
- Galvanized Steel: 5 mm
3000W
- Mild Steel: 8 mm
- Aluminum: 6 mm
- Stainless Steel: 8 mm
- Galvanized Steel: 6 mm
5 in 1 Laser Welding Machine
5 in 1 Laser welding machine with welding, cutting and cleaning functions.
FAQ
Engineered for maximum mobility, the 5-in-1 handheld fiber laser welder features a compact, lightweight design—often paired with a wheeled base or portable frame. This ensures effortless maneuverability and seamless adaptation to diverse work sites.
Laser welding speed varies based on key factors (power, material type, and thickness), typically reaching 0.5–120 mm/s—up to 10x faster than traditional welding methods. This exceptional efficiency makes it a high-performance solution for industrial production.
Only basic training is needed for safe, efficient operation—typically 1-3 days. Training covers machine components, setup, operating procedures, and adjusting key parameters (laser power, speed, shielding gas flow) for different materials/thicknesses, with a focus on PPE use and high-energy laser safety to enable quick mastery.
If you want to know more info please contact us!
