Short Description
The versatile sheet & tube laser cutting machine delivers high-efficiency cutting for both plates and pipes. Featuring high-power fiber laser technology, it boasts superior cutting speed, precision, and adaptability. Equipped with an automated tube clamping system and a large sheet working table, it accommodates a diverse range of industrial metals—including stainless steel, carbon steel, aluminum, and brass—streamlining your production workflows.
Product Description

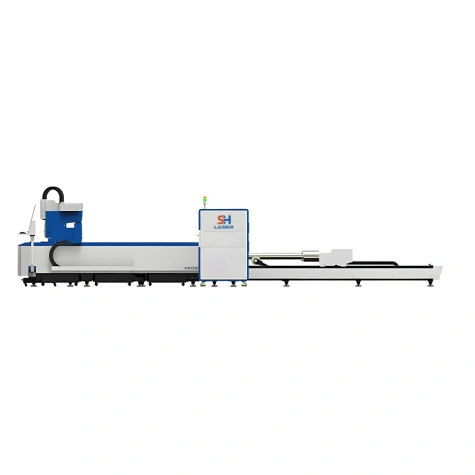

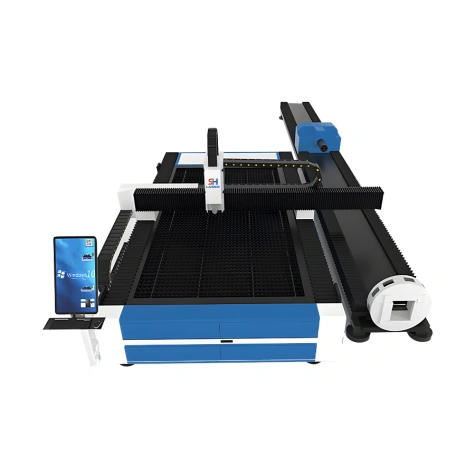

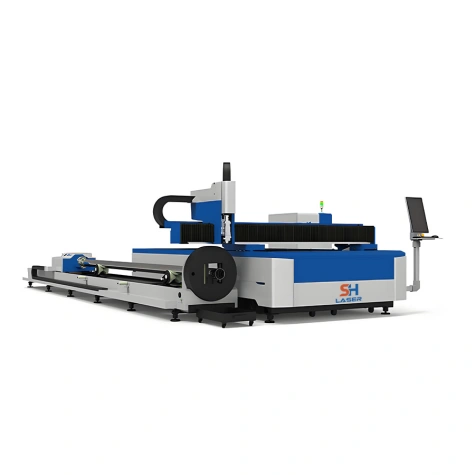

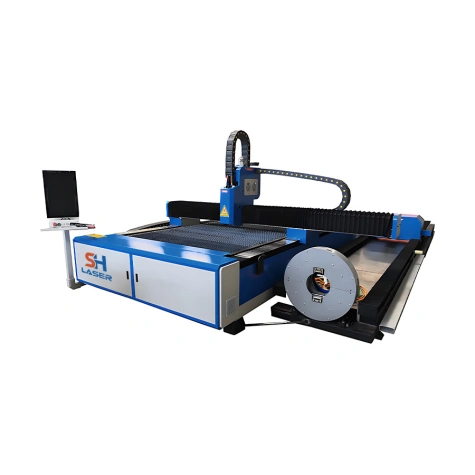

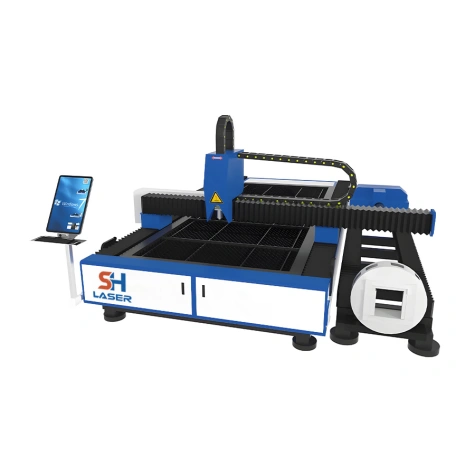

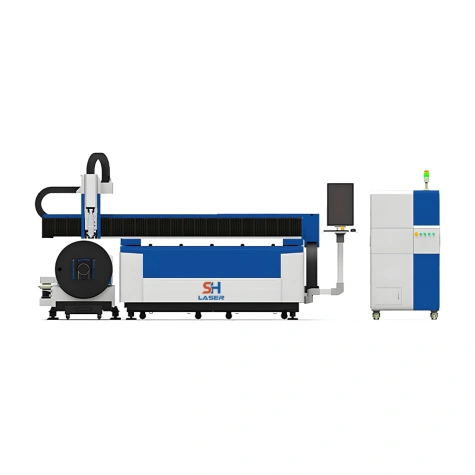

Sheet and Tube Laser Cutting Machine
This sheet and tube laser cutting machine is an innovative dual-purpose solution, seamlessly integrating sheet metal and tube cutting capabilities. Engineered for versatility, it excels at cutting metal sheets as well as round, square, and special-shaped tubes—ideal for diverse industrial processing scenarios.
Featuring a state-of-the-art pneumatic chuck, it enables rapid, secure tube clamping, boosting cutting stability and operational efficiency. Powered by advanced fiber laser technology, it delivers superior photoelectric conversion efficiency, fast cutting speeds, and precise, high-quality results across various metals. Widely adopted in sheet metal fabrication, automotive manufacturing, and metal furniture production, this machine is a reliable asset for your production line.
Product Details
Technical Specifications
(Custom configurations available upon request.)
| Product Name | SH–ST3015 | SH–ST4020 | SH–ST6015 | SH–ST6020 | SH–ST6025 |
| Metal Sheet Cutting Length | 3000*1500mm | 4000*2000mm | 6000*1500mm | 6000*2000mm | 6000*2500mm |
| Laser Power | 1KW-6KW | ||||
| Maximum Tube Length | 6200mm | ||||
| Tube Size Range | Ø10-350mm | ||||
| Maximum Load of Chuck | 600kg | ||||
| Positioning Accuracy | ±0.03mm | ||||
| Repeat Positioning Accuracy | ±0.02mm | ||||

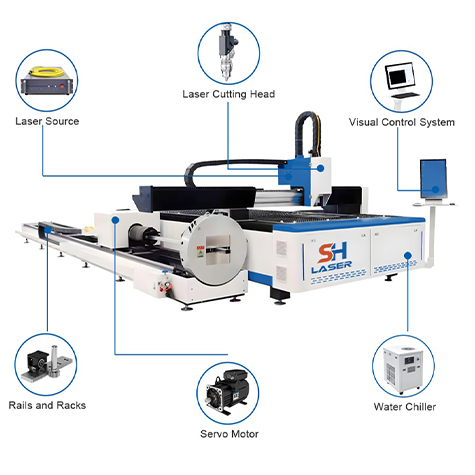

Our Advantages
Aircraft-grade aluminum beam
- This new generation of aviation aluminum beams is extruded with 4.000tons of pressure, achieving a beam strength of T6.
- It is light in weight, high in hardness and corrosion-resistant, and can greatly improve the operating speed and processing accuracy of the laser cutting machine.
Auto focus Laser Cutting Head
- The new cutting head boasts an advanced autofocus system auto-adjusting the focal point by material thickness, ensuring high cutting precision and efficiency. Paired with anti-collision protection and an efficient cooling system, it enhances stability and service life.
Servo Motor
- High Accuracy
- High-Speed Performance
- High Adaptability & Stability
- Fast Motor Dynamic Response (Ensuring Timeliness)
High-Speed Switching Table
- Advanced Parallel Technology: Enables instant, one-touch switching via software
- Unmatched Speed: The 1530 model changes over in under 20 seconds
- Key Benefits: Dramatically increases productivity and saves on labor costs.

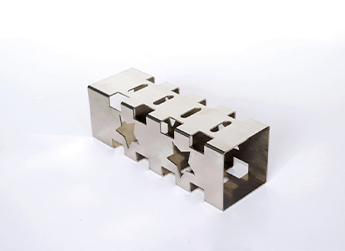

Cutting Samples
FAQ
Our standard product models have specifications for your reference. If your sheet material is not within this range, please contact us and we will find a suitable machine for you.
Cutting speed: 45 m/min with narrow kerf. Laser cutter positioning accuracy: 0.05mm, repeat positioning accuracy: 0.03mm. If you have higher requirements, please contact us and our engineers will solve them for you.
We offer 12months warranty on the entire machine. Under normal use, we will provide free repair or replacement for component failures caused by defects in materials or workmanship.
If you want to know more info please contact us!
