Short Description

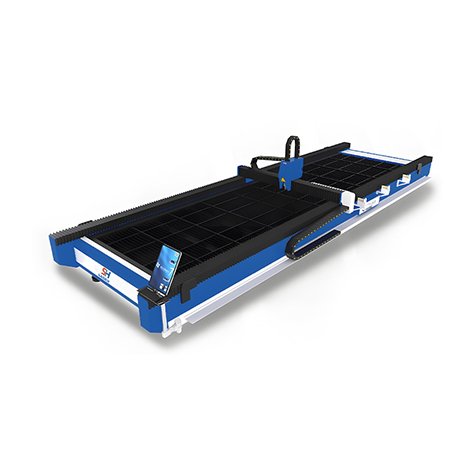

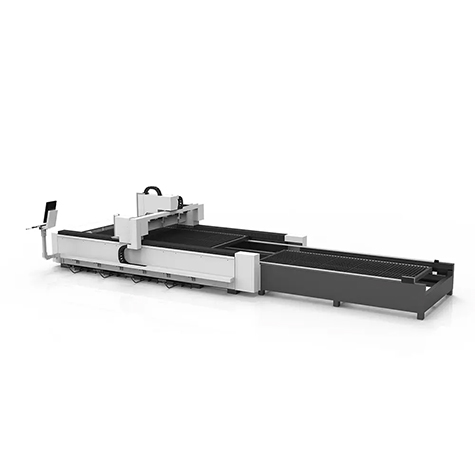

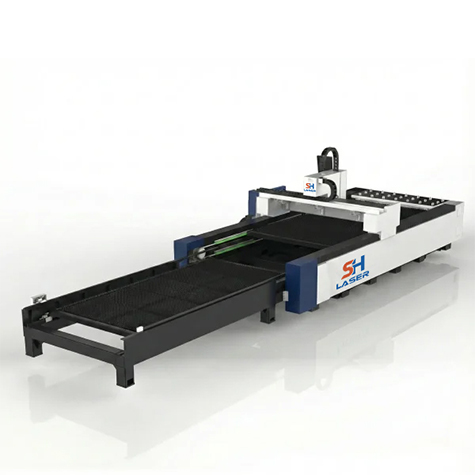

The 6025 fiber exchange platform laser cutting machine adopts a parallel switching platform with bilateral drive and sprocket chain configuration, ensuring stability, strong rigidity, and high speed. Its high-speed parallel exchange double worktable enables reliable transmission, shorter exchange time (≤15s), and smoother cutting surfaces—an ideal solution for boosting efficiency and productivity.
Product Description

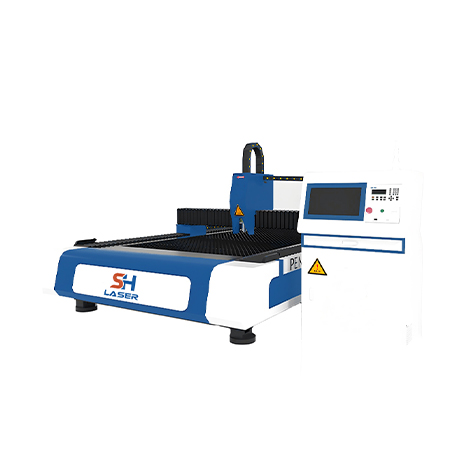

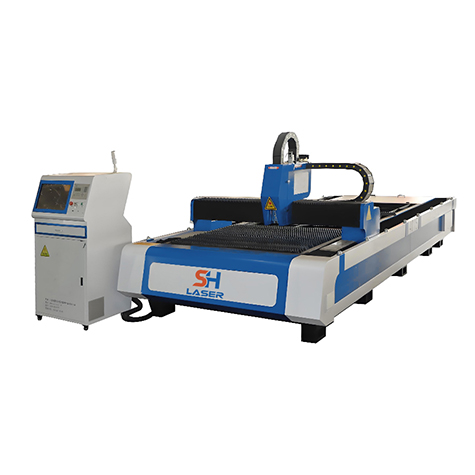

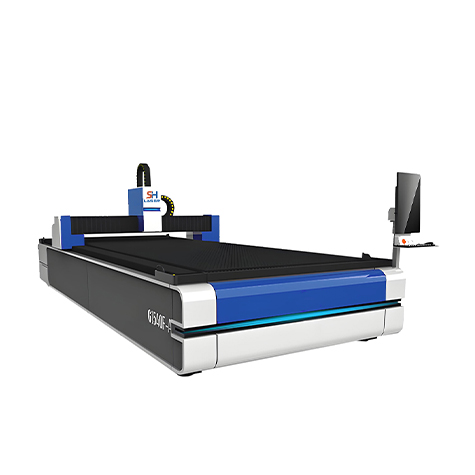

Fiber Laser Cutting Machine
SH is a professional Chinese supplier of fiber laser cutting machines. Engineered for industrial-grade performance, our equipment delivers superior precision and efficiency in sheet metal processing—perfect for workshops and factories. It cuts stainless steel, carbon steel, aluminum, copper, titanium, and other metals flawlessly. Powered by state-of-the-art fiber lasers and intelligent CNC systems, it transforms raw sheet metal into high-value parts, reducing waste and maximizing production efficiency.

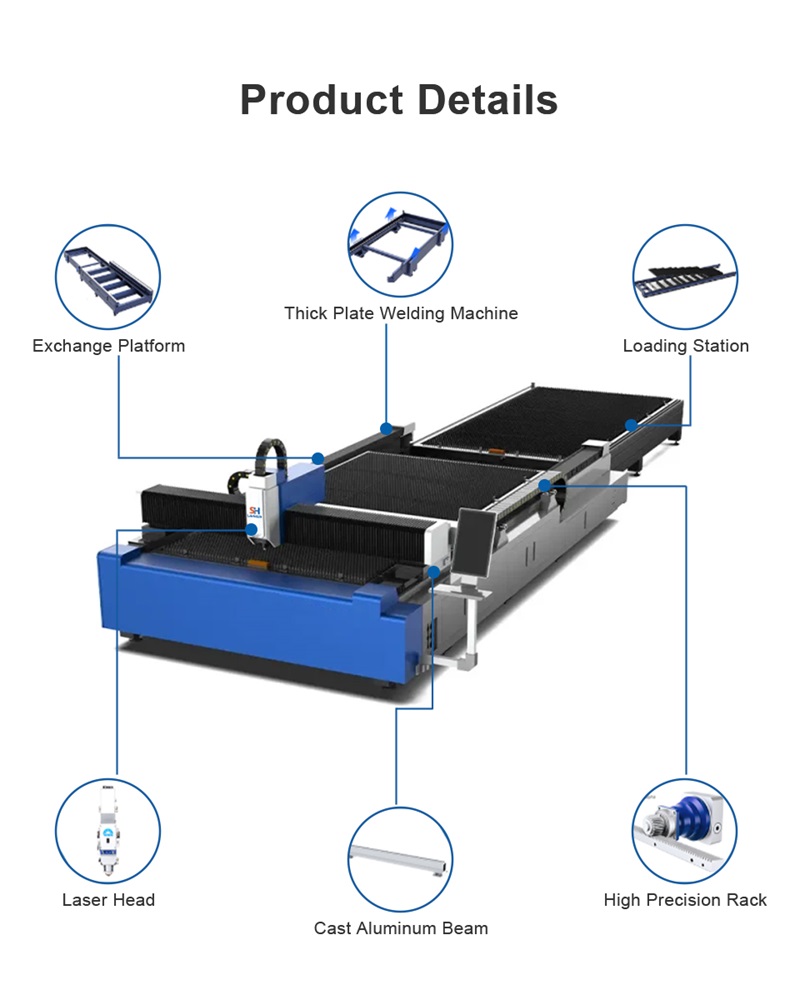

Product Details
Technical Specifications
(Custom configurations available upon request.)
| SH DOUBLE Table Fiber Laser Cutting Machine | |||||
| Model | SH-SE3015 | SH-SE4020 | SH-SE6015 | SH-SE6020 | SH-SE6025 |
| Working Area | 3000*1500 | 4000*2000 | 6000*1500 | 6000*2000 | 6000*2500 |
| Worktable Bearing Capacity | 1250kg | 1650kg | 2500kg | 2500kg | 3500kg |
| Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Repeat Positioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Acceleration | 1G-2.5G | 1G-2.5G | 1G-2.5G | 1G-2.5G | 1G-2.5G |
| Running Speed | 80-140m/min | 80-140m/min | 80-140m/min | 80-140m/min | 80-140m/min |
| Machine Bed | Plate welding bed | Plate welding bed | Plate welding bed | Plate welding bed | Plate welding bed |
| Dimensions | 8300*2220*2300 | 10500*2900*2300 | 14800*2220*2300 | 14800*2900*2300 | 14800*3600*2300 |
| Laser Power | 1000W-30000W | ||||
| Cutting Thickness | 1–50mm (Depends on Material and Power) | ||||
| Optional Features | Voltage Regulator, Dust Collector, Air Compressor | ||||
Our Advantages

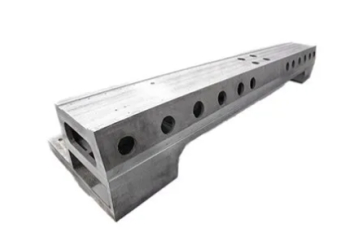

Aircraft-grade aluminum beam
- This new generation of aviation aluminum beams is extruded with 4.000tons of pressure, achieving a beam strength of T6.
- It is light in weight, high in hardness and corrosion-resistant, and can greatly improve the operating speed and processing accuracy of the laser cutting machine.

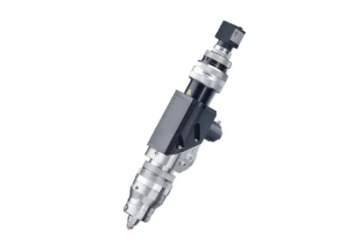

Auto focus Laser Cutting Head
- The new cutting head boasts an advanced autofocus system auto-adjusting the focal point by material thickness, ensuring high cutting precision and efficiency. Paired with anti-collision protection and an efficient cooling system, it enhances stability and service life.
Servo Motor
- High Accuracy
- High-Speed Performance
- High Adaptability & Stability
- Fast Motor Dynamic Response (Ensuring Timeliness)

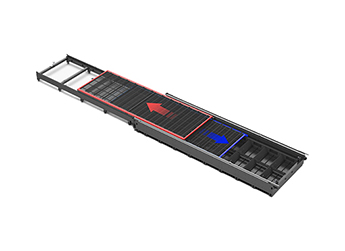

High-Speed Switching Table
- Advanced Parallel Technology: Enables instant, one-touch switching via software
- Unmatched Speed: The 1530 model changes over in under 20 seconds
- Key Benefits: Dramatically increases productivity and saves on labor costs.
Cutting Samples
FAQ
SH fiber laser cutters offer a 10+ year lifespan, with the fiber laser source boasting a rated service life over 100,000 hours. Standard warranty: 1 year for the entire machine. During warranty, we provide free technical support and replacement for non-consumable parts with manufacturing defects.
Common auxiliary gases: oxygen, nitrogen, or compressed air.
Oxygen: For carbon steel (high efficiency, smooth cuts; slight edge oxidation).
Nitrogen: For stainless steel/aluminum (oxidation-free, polished edges).
Compressed air: Cost-effective for basic tasks and thin materials.
Selection depends on material, thickness, and desired edge quality—proper pressure/flow is critical for best results.
Cutting speed: 45 m/min with narrow kerf. Laser cutter positioning accuracy: 0.05mm, repeat positioning accuracy: 0.03mm. If you have higher requirements, please contact us and our engineers will solve them for you.
If you want to know more info please contact us!
