Short Description
The portable fiber laser marking machine is a compact, high-efficiency solution for high-precision marking on a wide range of metals and plastics. Powered by advanced fiber laser technology, it boasts reliable performance, minimal maintenance, and an extended service life. Excelling at marking serial numbers, QR codes, barcodes, logos, and other intricate details, it is the ideal choice for SMEs, workshops, and on-site/mobile applications.
Product Description

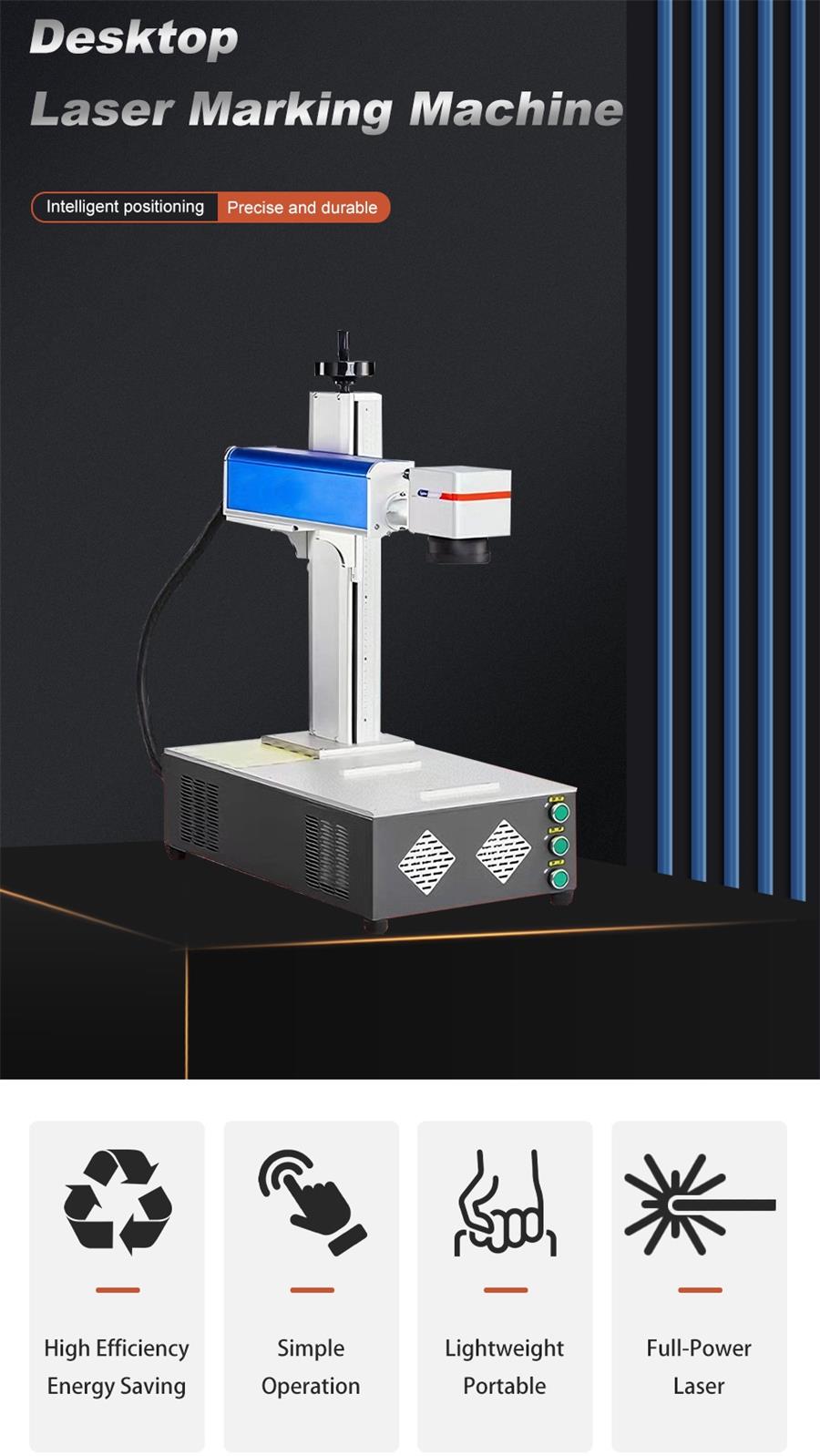

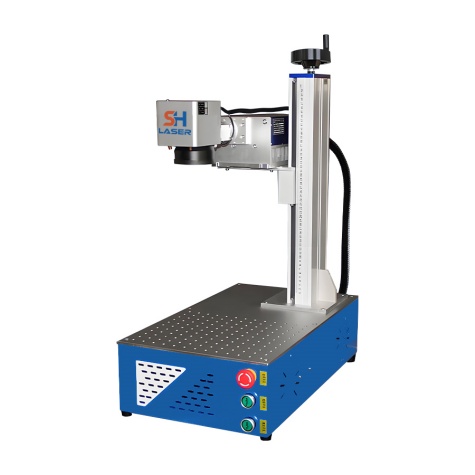

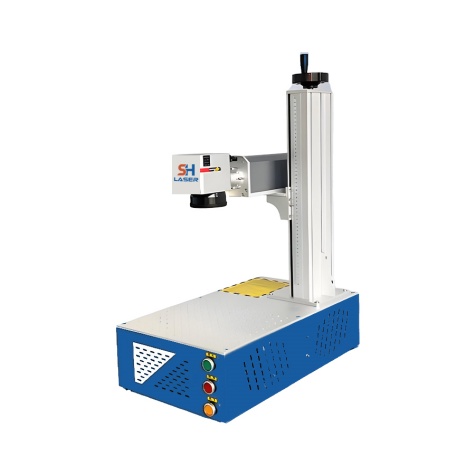

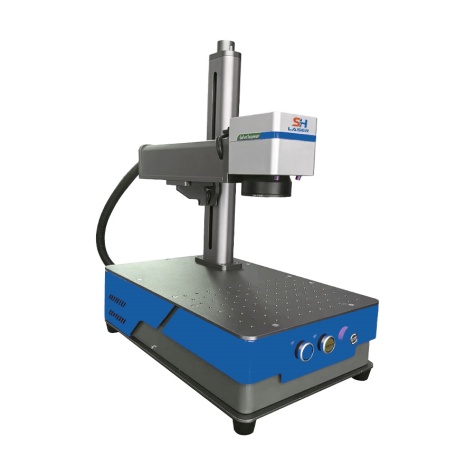

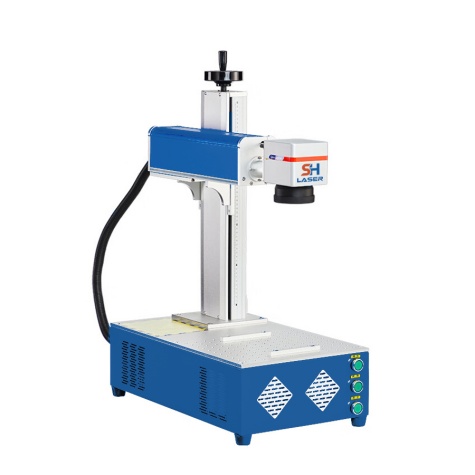

Laser Marking Machine

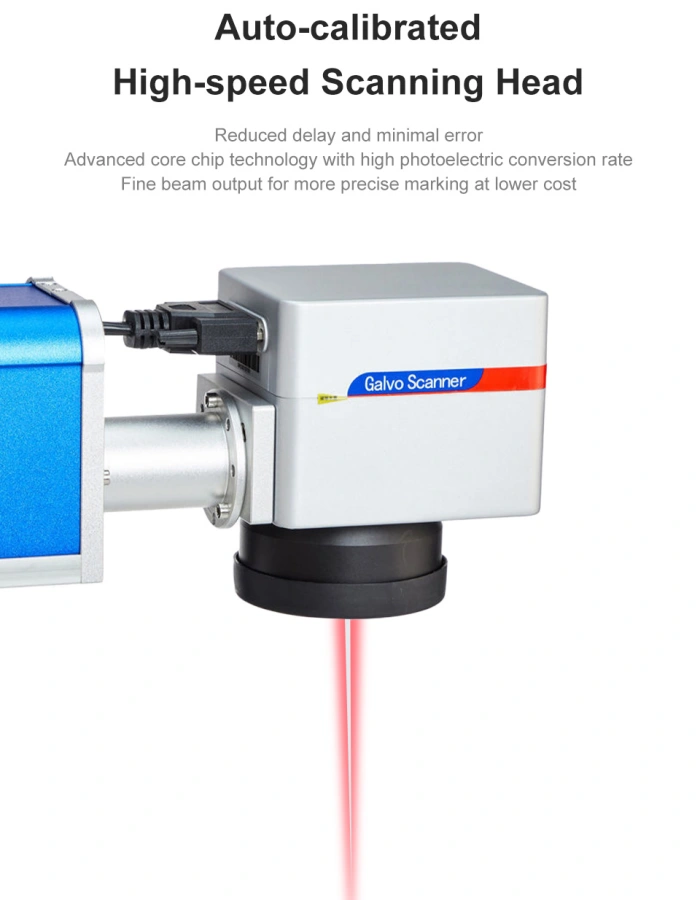

The compact, lightweight portable fiber laser marking machine—equipped with a high-speed galvanometer system and stable fiber laser source—delivers fast, precise permanent marking on stainless steel, aluminum, brass, gold, and certain plastics (for serial numbers, barcodes, QR codes, logos, text, and patterns), offering multiple power configurations, low maintenance, long service life, and user-friendly software ideal for small to medium-sized businesses, custom engravers, and industrial manufacturers needing flexible use in mobile tasks, tight production spaces, or on-site operations.
Product Details
Fiber Laser Compatible Materials:
Metals: Stainless steel, carbon steel, anodized aluminum, aluminum alloy, aluminum, copper, iron, gold, silver, carbide, and other metal surfaces.
Plastics: Rigid plastics, PVC (actual testing recommended due to compositional differences).
Applications: Nameplates, metal/plastic parts, hardware, jewelry, painted/coated metals, glazed ceramics, Yixing teapots, lacquered paper boxes, melamine boards, mirror coatings, graphene, chip de-marking, beverage cans, formula tins, etc.
Technical Specifications
(Custom configurations available upon request.)
| Product Name | SH-M20W / SH-M30W / SH-M50W / SH-M70W / SH-M100W |
| Laser Type | Fiber Laser (Raycus / JPT / MAX optional) |
| Laser Wavelength | 1064nm |
| Marking Area | 110×110mm, 150×150mm, 175×175mm, 200×200mm, 300×300mm (optional) |
| Marking Speed | ≤ 8000mm/s |
| Marking Depth | ≤ 0.4mm (depending on power and material) |
| Min. Line Width | 0.01mm |
| Min. Character Size | 0.15mm |
| Repetition Accuracy | ±0.001mm |
| Cooling Method | Air Cooling |
| Control Software | EZCAD |
| Supported File Formats | PLT, BMP, DXF, JPG, PNG, TIF, AI, etc. |
| Working Voltage | Single phase 220V 50HZ |
| Optional Accessories | Rotary Device, Auto Focus Sensor, 2D Work Table, Laptop, etc |
| Laser Module Lifespan | >100,000 hours |
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages
Ultra-High Precision: Capable of engraving extremely fine lines and micro-text (with precision up to 0.01mm). It enables clear marking of complex logos, QR codes, and serial numbers, enhancing product grade and traceability.
Non-Contact & Non-Destructive: As a non-physical contact process, laser marking applies no mechanical stress or damage to precision, fragile, soft, or finished workpieces.
Green & Clean Production: The process generates no chemical pollution, features low energy consumption, operates quietly, maintains a clean working environment, and meets modern environmental standards.

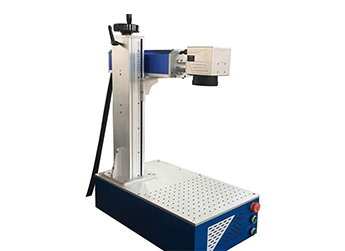

Marking Area
Marking area up to 30*30cm with a spot size of only 0.01mm.

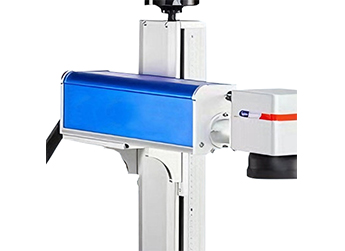

Extended Optical Path
- Ensures stable output
- Enhances beam intensity
- Extends linear light transmission distance

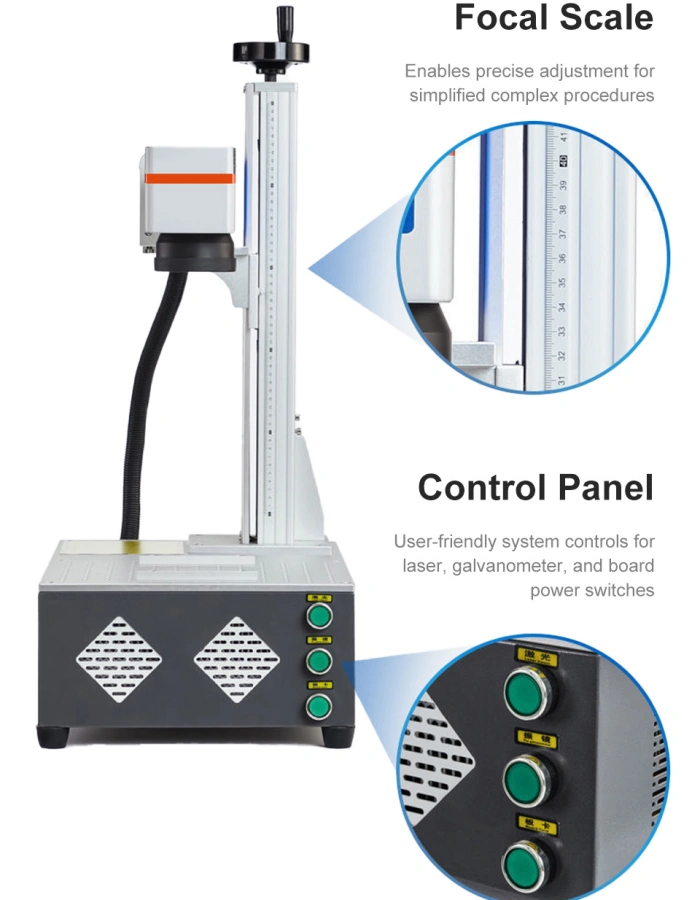

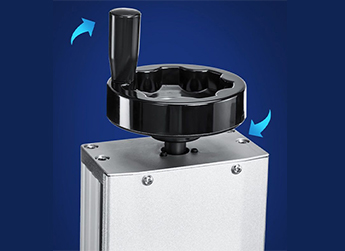

Manual Lifting Axis for Lens Height Adjustment
Rotate the handwheel to set the optimal lens height.
Integrated Smart Chip
- Significantly improves marking accuracy
- Delivers fast and stable operation
- Enables an exceptionally smooth workflow experience

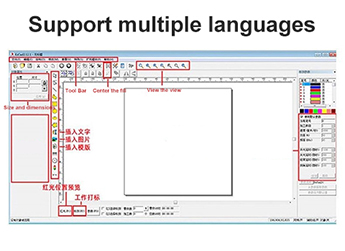

Intelligent Operating
Intelligent operating software supports multiple formats
FAQ
Our equipment offers excellent compatibility with metals (stainless steel, aluminum, copper, alloys) and most plastics and ceramics. The marking is permanent, as it’s formed by altering the material’s surface layer with the laser. It will not wear off or be removed by rubbing with alcohol under normal conditions.
In terms of precision, our machine achieves high-precision marking, ensuring QR codes and micro-text are clear and readable. Speed depends on the content, but a standard logo or serial number is typically completed within 1-3 seconds. The system uses imported galvanometer scanners, premium laser sources, and features an intelligent temperature control system to guarantee stable output during continuous 8-hour operation.
Operation is very straightforward. We provide illustrated manuals, and users can learn the basics within half a day. The software supports direct import of common file formats such as AutoCAD files.
