Customized CNC Hydraulic Press Bending Machine for Sheet Metal and Stainless Steel

Product Description

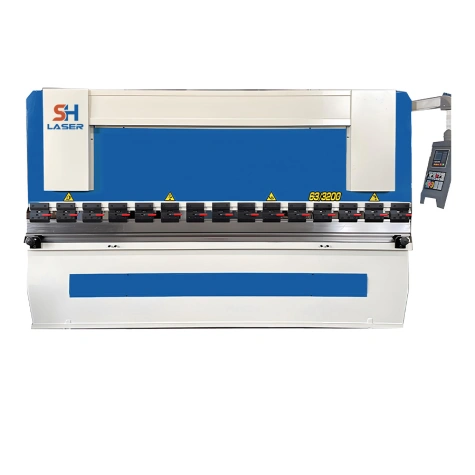

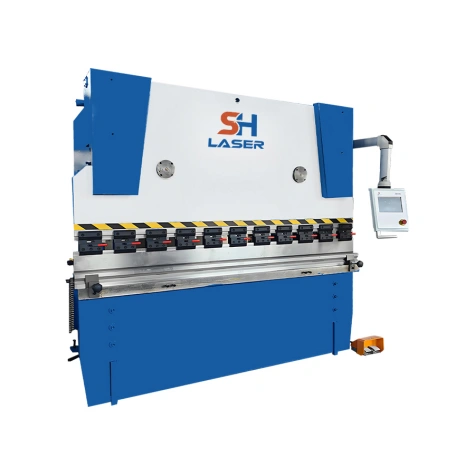

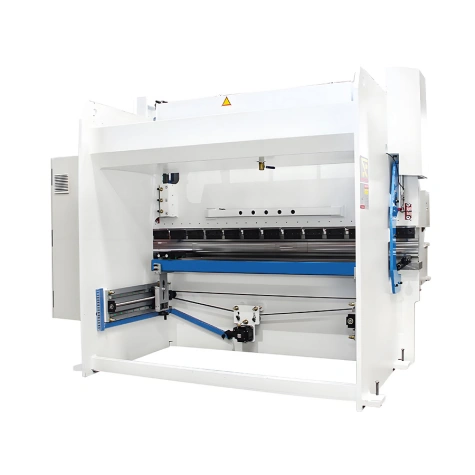

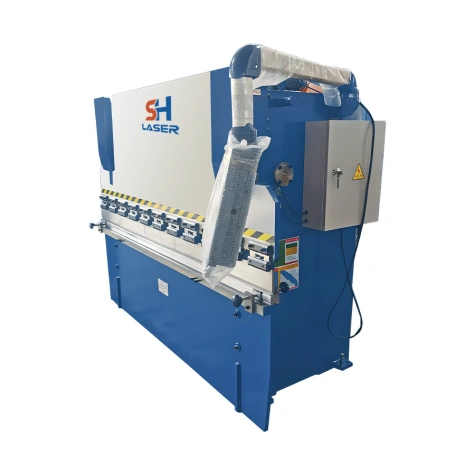

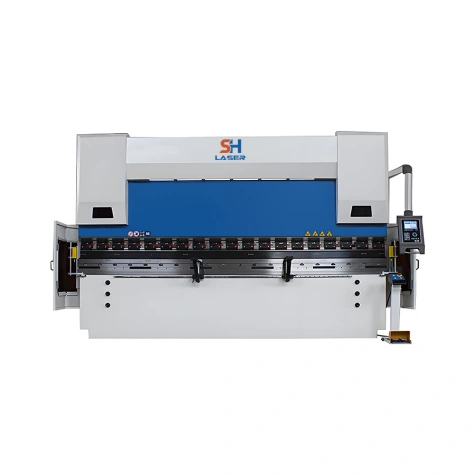

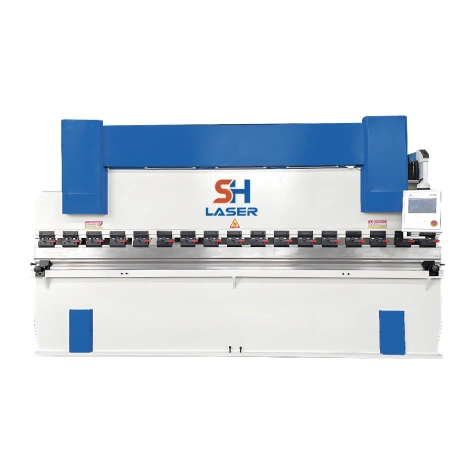

CNC Hydraulic Press Bending Machine

Hydraulic press brakes offer high bending accuracy, flexibility for various material thicknesses, complex bending capability, fast setup times to boost production efficiency, and consistent, repeatable results ensuring quality control—their versatility and efficiency make them essential for precise metal forming; SH press brakes are widely used in automotive, aerospace, construction and metal fabrication industries, ideal for bending sheet metal, aluminum, stainless steel and other metals into precise shapes.

Product Details

Technical Specifications

(Custom configurations available upon request.)

Type	Nominal pressure (KN)	Workbench length (mm)	Workbench width (mm)	Poles distance (mm)	Throat depth (mm)	Main motor (kw)	*Dimensions LWH* (mm)
40*1600	400	1600	900	1165	350	5.5	225016502400
63*2500	630	2500	900	1960	380	5.5	315017002500
80*2500	800	2500	900	1960	380	7.5	315017002500
80*3200	800	3200	900	2760	380	7.5	385017002500
100*3200	1000	3200	950	2750	390	7.5	390018002650
125*3200	1250	3200	950	2750	390	11	390018002680
160*3200	1600	3200	1000	2740	400	15	400019002720
200*3200	2000	3200	1000	2730	400	18.5	400019002720
300*3200	3000	3200	1330	2720	500	22	400022003500
100*4000	1000	4000	950	3350	390	7.5	480018002650
125*4000	1250	4000	950	3350	390	11	480018002680
160*4000	1600	4000	1000	3340	400	15	480019002720
200*4000	2000	4000	1000	3330	400	18.5	480019002800
250*4000	2500	4000	1000	3330	450	18.5	480019002850
300*4000	3000	4000	1330	4920	500	22	480019502900
200*6000	2000	6000	1000	4940	400	18.5	680019002800
250*6000	2500	6000	1050	4930	450	18.5	680019002850
300*6000	3000	6000	1330	4920	500	22	680019502900
400*6000	4000	6000	1350	4920	500	37	680020002950
500*6000	5000	6000	1350	4910	500	45	680020503000

Customized Service

If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.

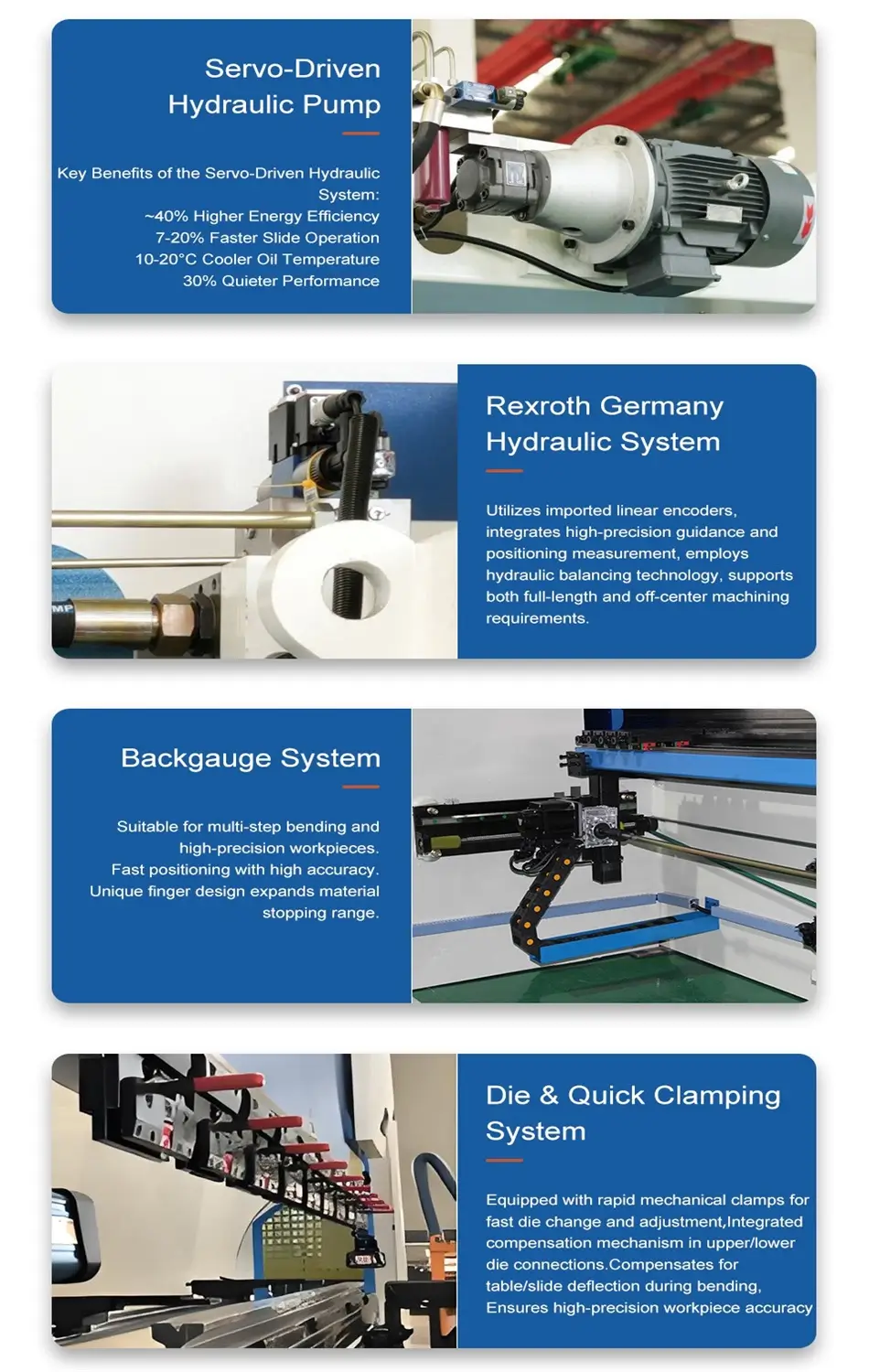

Our Advantages

Full Welded Steel Structure

Fabricated from high-strength steel plate for superior mechanical strength and rigidity. Features an upper hydraulic drive for exceptionally smooth operation.

Precision Synchronization System

Utilizes mechanical stops and a torsion bar synchronization mechanism to ensure high parallel accuracy between the left and right cylinders.

Advanced Deflection Compensation

The upper beam is equipped with a deflection compensation system. For machines of 250 tons and 4000mm bed length or more, an additional lower table compensation system is available.

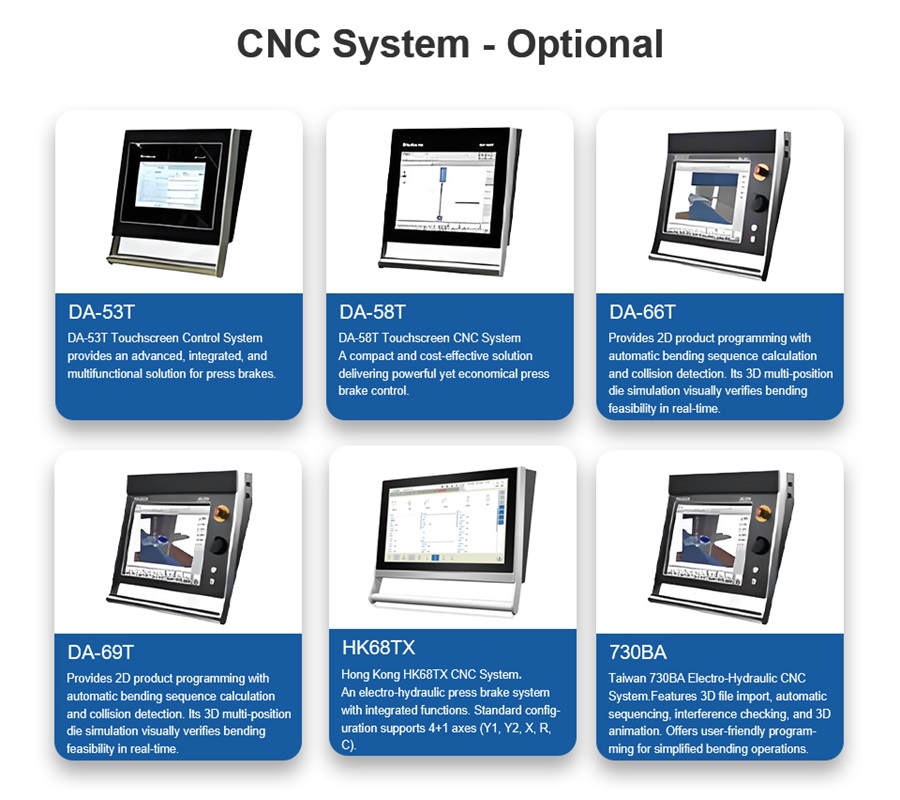

CNC Backgauge System

The back gauge beam can be automatically raised and lowered via CNC control.
The X-axis (front/back motion) is driven by a digital AC servo motor via a ball screw and linear guide system.
Allows for automatic adjustment of the stop position and includes a retract function to avoid tooling interference.
Back gauge fingers 21 and 22 can be electrically adjusted (optional) along linear guides for lateral positioning.

Movable Front Support Frame

A mobile front support bracket that moves along linear guides and can be parked at any position. Equipped with rotation and height adjustment functions to assist your bending

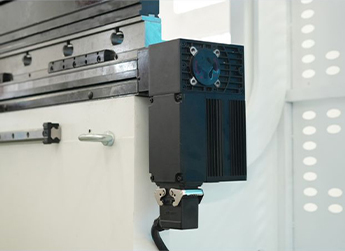

Mechanical Compensation Device

The compensation system utilizes closed-loop control for high precision, with the compensation value automatically calculated and set by the CNC system to ensure consistent bending angles across the entire length. The convex wedge assembly consists of a set of inclined wedge blocks. The CNC system calculates the required compensation based on the bending load and automatically controls the relative displacement of the convex wedges to effectively compensate for deflection deformation of the slide and table frame, achieving ideal bending results. Mechanical deflection compensation creates a “pre-crowning” effect through position control, forming a curve along the table length that matches the actual deflection, ensuring uniform clearance between upper and lower dies during bending and maintaining angular consistency along the workpiece length. With numerous compensation points, this linear compensation method significantly enhances bending accuracy and workpiece quality.

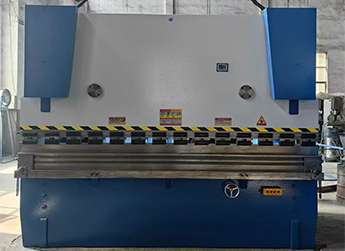

Frame Rigidity Enhancement

Frame components are machined by high-precision large gantry machining centers, while automatic welding ensures welding uniformity. Additionally, vibration aging technology eliminates post-welding residual stress, guaranteeing the frame’s durability and stability.

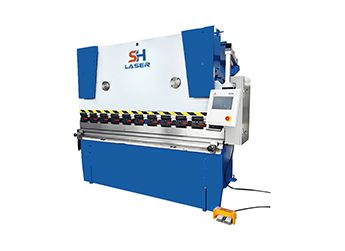

Quick Clamping System

Securely fastens metal sheets or workpieces to the hydraulic press brake’s bed or lower die, ensuring precise bending.

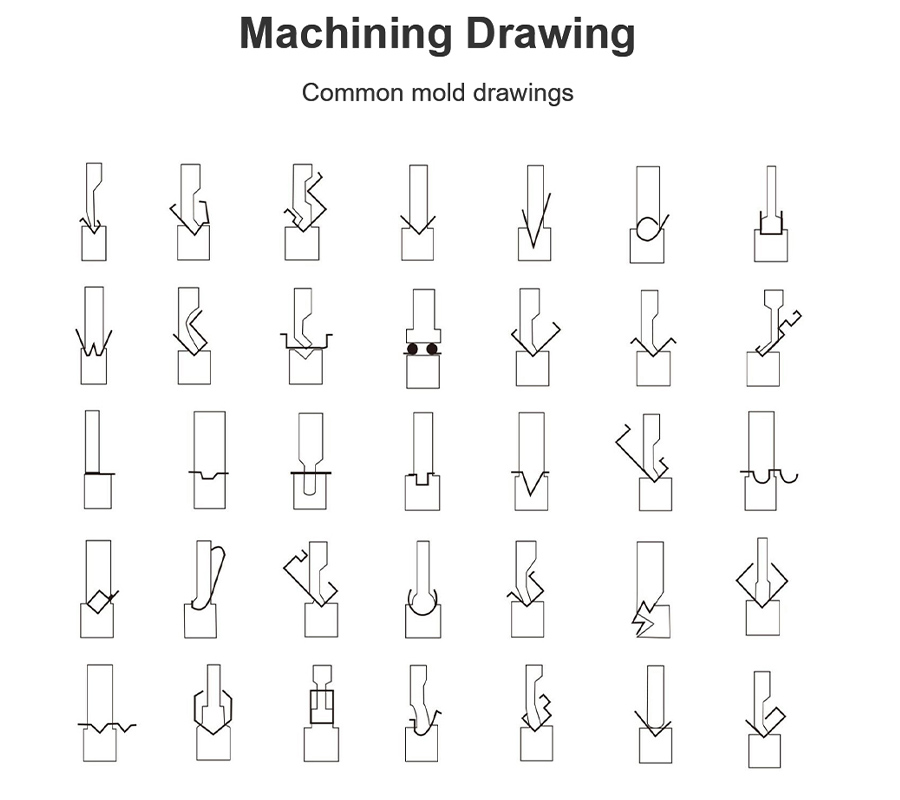

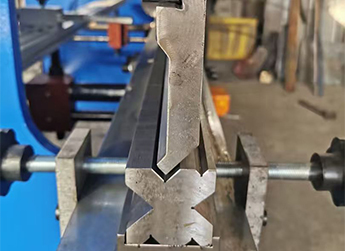

Bending Machine Punches & Dies

We recommend selecting the right punches and dies prior to purchase—their proper combination is key to achieving the desired bend profile. We offer a diverse range of die options to suit various bending requirements.

FAQ

1. What is the maximum bending length and thickness?

You can refer to the parameter table. If it still doesn’t meet your requirements, you can contact us for customization.

2. Will the bending angle be consistent across the entire length?

Our equipment is equipped with a mechanical deflection compensation system. During operation, the system automatically calculates and compensates for machine deformation, ensuring uniform clearance between the slide and worktable across the entire length. This results in perfectly straight and clean products, allows easy operation even for beginners, and effectively helps reduce your rejection rate.

3. What is the warranty period? What does the warranty cover?

We offer 12months warranty on the entire machine. Under normal use, we will provide free repair or replacement for component failures caused by defects in materials or workmanship.
