Short Description

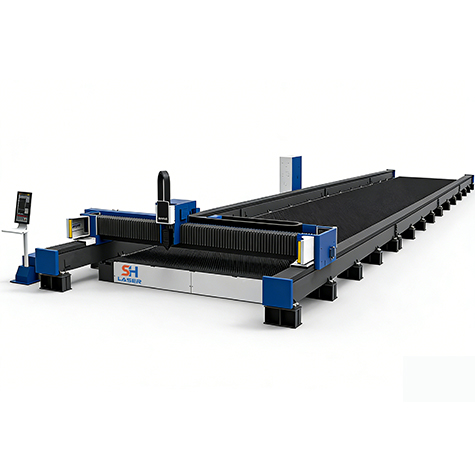

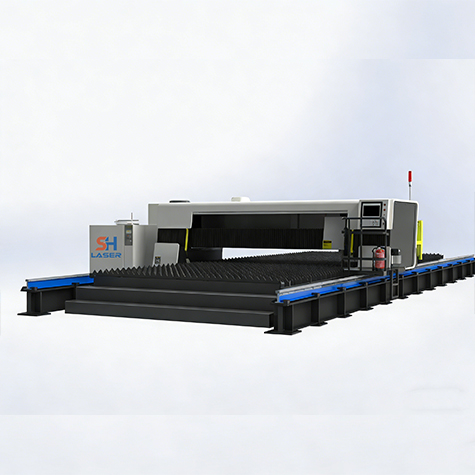

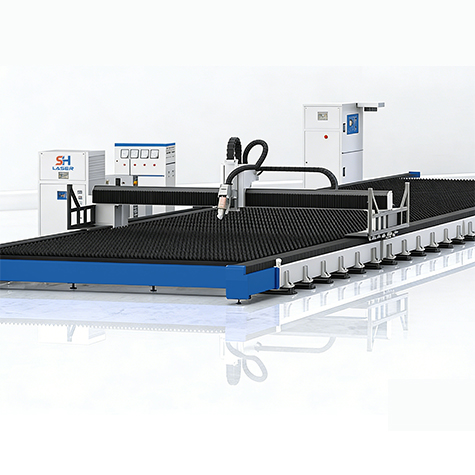

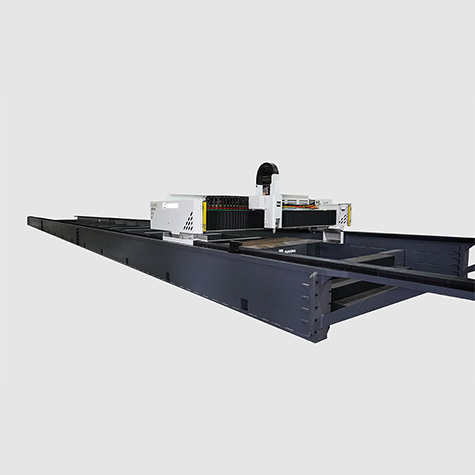

The ground rail gantry laser cutter is a large-format, high-power heavy-duty model. Featuring an open structure and rail-mounted gantry, it enables stable, precise cutting of extra-large sheet metal with high efficiency and low operating costs.
Key Features
- Large Format: Efficient, flexible cutting of ultra-large sheets
- Power Range: 6000W–60000W for heavy-duty cutting demands
- High Precision: Accurate cutting for thick/large metal plates
- Gantry & Ground Rail Design: Stable, durable, long-term reliable for industrial use
Product Description
The Ground Rail Laser Cutter boasts a rigid ground rail structure, enabling high-precision, high-efficiency cutting of large sheets and thick metal plates. Its advanced laser technology delivers clean, smooth edges with minimal heat-affected zones. Supporting multiple power options, this user-friendly, reliable equipment suits automotive manufacturing, metal fabrication, shipbuilding, and construction—ideal for boosting production efficiency while ensuring top-tier cutting quality.
Core Features
Technical Specifications
(Custom configurations available upon request.)
| Model | SH-SGR 2500-14 | SH-SGR 2500-22 | SH-SGR 3200-14 | SH-SGR 3200-22 | SH-SGR 4000-14 | SH-SGR 4000-22 |
| Cutting Size | 2550mm*14500mm | 2550mm*22500mm | 3250mm*14500mm | 3250mm*22500mm | 4050mm*14500mm | 4050mm*22500mm |
| Max. Running Speed | 80m/min | 80m/min | 80m/min | 80m/min | 80m/min | 80m/min |
| Positioning Accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| Repositioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
Our Advantages

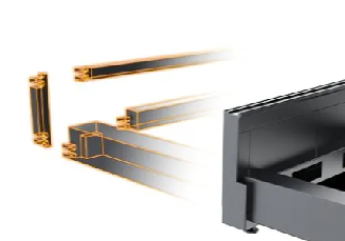

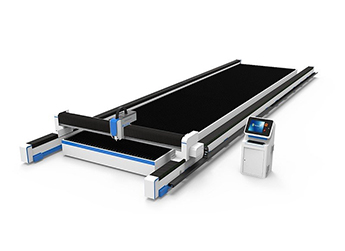

Segmented Modular Worktable
Detachable bed & worktable for easy maintenance/assembly – delivers high dynamic performance and extended service life.

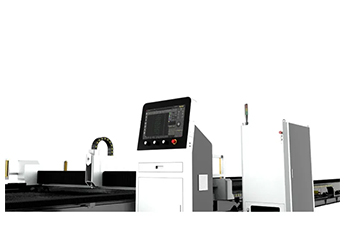

Laser Cutting Control System
High-end intelligent controller for high-power fiber lasers: Plug-and-play, rapid setup, precise tuning. Customizable full-function solutions supporting automation & digital integration for industrial use.

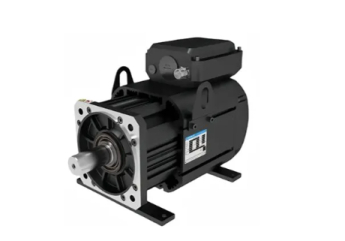

Servo Motor
- High Accuracy
- High-Speed Performance
- High Adaptability & Stability
- Fast Motor Dynamic Response (Ensuring Timeliness)
Intelligent Laser Cutting Head
- Highest cutting speed
- Superior cut edge quality
- Intelligent sensors for stable processes
Cutting Samples
FAQ
Our standard product models have specifications for your reference. If your sheet material is not within this range, please contact us and we will find a suitable machine for you.
Cutting speed: 45 m/min with narrow kerf. Laser cutter positioning accuracy: 0.05mm, repeat positioning accuracy: 0.03mm. If you have higher requirements, please contact us and our engineers will solve them for you.
We offer 12months warranty on the entire machine. Under normal use, we will provide free repair or replacement for component failures caused by defects in materials or workmanship.
If you want to know more info please contact us!
