Short Description
This small tube pipe laser cutting machine is engineered for precision cutting of a wide range of pipes and profiles, including round tubes, square tubes, channel steel, and angle steel. Boasting a space-saving design and high operational efficiency, it delivers fast cutting speeds, smooth cut edges, and consistent performance—making it the ideal solution for small-batch metal processing, furniture manufacturing, and hardware production. User-friendly with intuitive operation, it also supports customization to meet specific application requirements.
Product Description

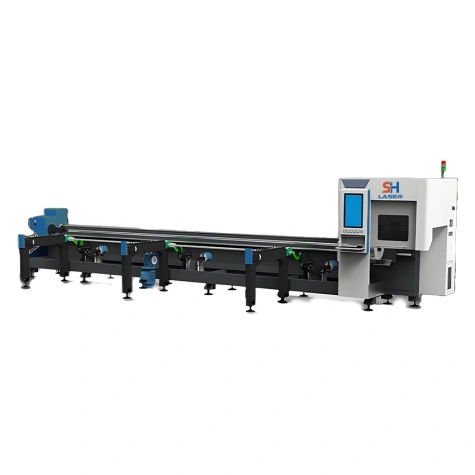

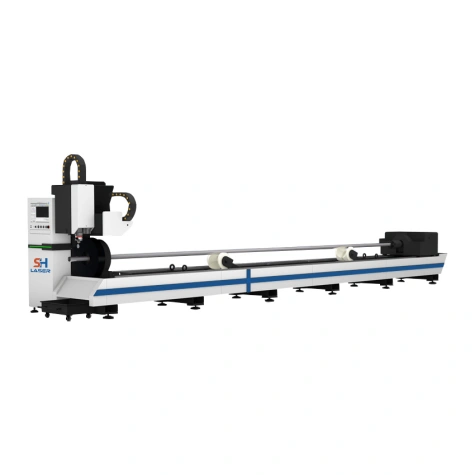

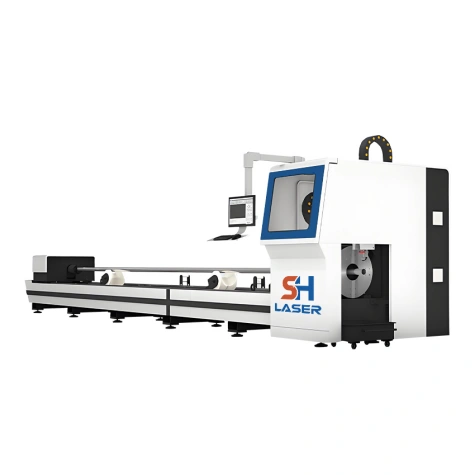

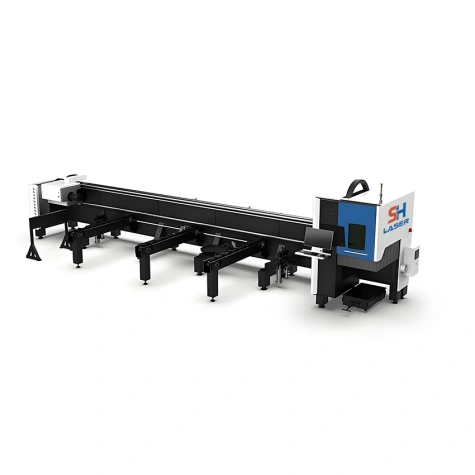

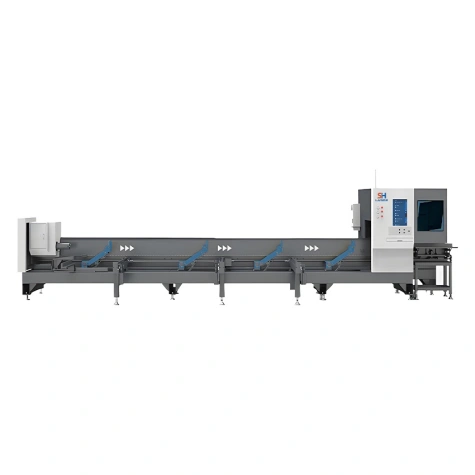

Tube Metal Laser Cutting Machine
The Compact High-Precision Tube Laser Cutter delivers exceptional precision for metal tube cutting. Compatible with round tubes, square tubes, channel steel, and angle steel, it caters to diverse manufacturing requirements.
Featuring an advanced fiber laser source and professional clamping system, it guarantees stable performance, smooth cut edges, and consistent accuracy. Its intelligent control system streamlines operation—intuitive even for novices—while preserving high productivity.
Boasting a space-saving design and low energy consumption, this model is ideal for small workshops and custom metal fabrication projects. It delivers superior performance across furniture, fitness equipment, and hardware manufacturing industries..
Product Details
Technical Specifications
(Custom configurations available upon request.)
| Sub Item | SH-T90 | SH-T120 |
| Tube Cross-Sectional Shape | Round, square, rectangular, oval | Round, square, rectangular, oval |
| Tube Size Range | Φ15–80mm | Φ15–100mm |
| Requirements for Tubes | Diameter＜φ50mm Thickness≥0.8mm Diameter≥φ50mm Wall thickness≥2.5% of tube diameter | Diameter＜φ50mm Thickness≥0.8mm Diameter≥φ50mm Wall thickness≥2.5% of tube diameter |
| Pipe Loading Range | 5000–7000mm | 5000–7000mm |
| Maximum Tube Weight | 75kg | 100kg |
| Shortest Remaining Material | 50mm | 50mm |
| Bin Bearing | 1.5T | 1.5T |
| Maximum Cutting Length of Pipe | 2000mm | 2000mm |
| Dimensions | 8200×1900×2100mm | 8200×1900×2100mm |
| Overall Weight | 1200kg | 1200kg |
| Positioning Accuracy | ±0.05mm/m | ±0.05mm/m |
| Repositioning Accuracy | ±0.03mm/m | ±0.03mm/m |
| Max. Chuck Rotating Speed | 180r/min | 180r/min |
| Y Axis Maximum Speed | 120m/min | 120m/min |
| Y Axis Maximum Acceleration | 1.5G | 1.5G |
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages

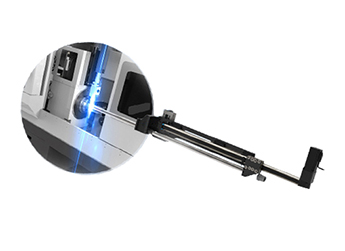

Internal Pipe Debris Removal Function
Designed for the pipe fitting sector, this unit removes cutting slag from the innerwall of pipes (Ф15-120 mm). lt ensures slag-free cutting, enabling pipes toproceed directly to the forming machine without any intermediate cleaning.

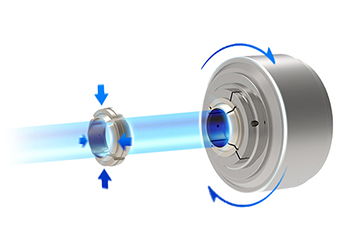

All-Pneumatic Chuck for Professional Tube Cutting
Hollow-rotating 4-jaw design. Speed: 150+ RPM for instant response.
Professional Tube Cutting: Equal-diameter collets protect tube surface.
Quick collet changeover in just 3 minutes.

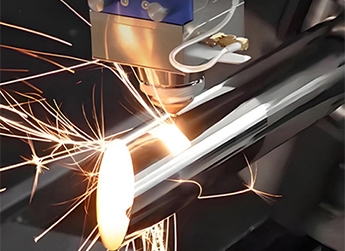

Ultra-Fast Cutting
Acceleration: 1.5 G-ForcePerformance Benchmark: Cuts a Ф20mm x 1.05mm stainless steel tube in 0.8s.
Cutting Samples
FAQ
Our standard product models have specifications for your reference. If your material is not within this range, please contact us and we will find a suitable machine for you.
We ensure precision through a rigid mechanical structure, a servo-driven following support system (prevents sagging), and an automatic focus tracking system. Regarding burrs: the key lies in optimal cutting gas purity and pressure settings. Our built-in process database automatically matches the best parameters for different materials, ensuring smooth, vertical cuts with minimal dross.If you have higher requirements, please contact us and our engineers will solve them for you.

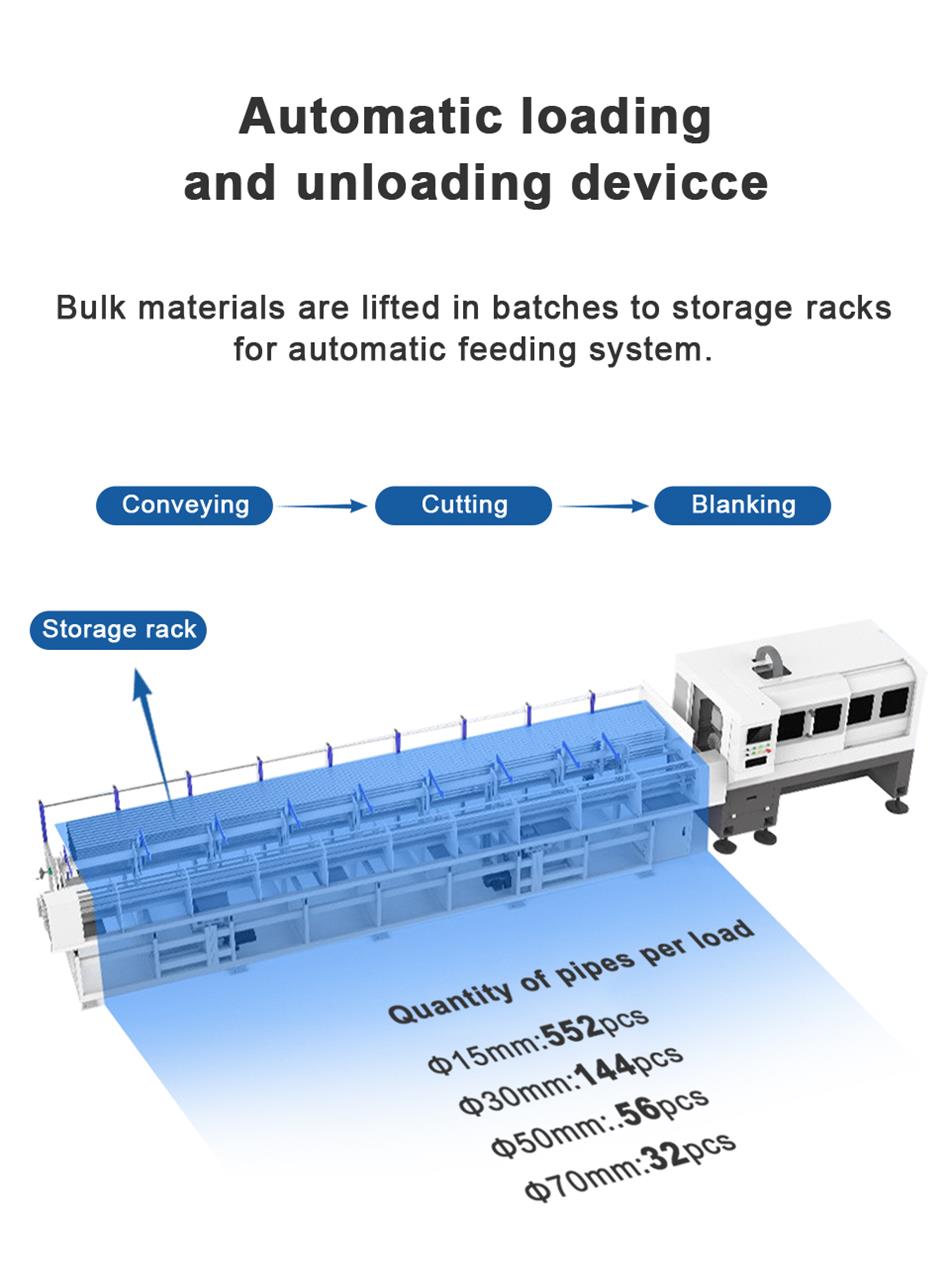

The speed is highly efficient. For example, cutting a 3mm stainless steel round tube can reach speeds of several meters per minute. For convenience, we offer optional automatic feeding racks and finished-part sorting racks, which significantly reduce manual handling and enable continuous, unattended production.
