Description
This 3-in-1 handheld laser machine integrates welding, cutting and cleaning functions in one, delivering efficiency, precision and portability—suitable for diverse metals, with a flexible design to easily tackle complex workpieces and multifunctional tasks.
Product Description

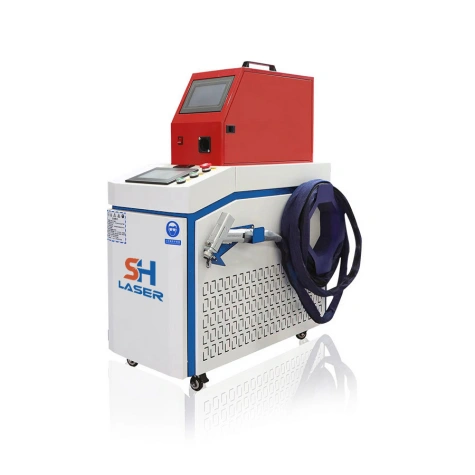

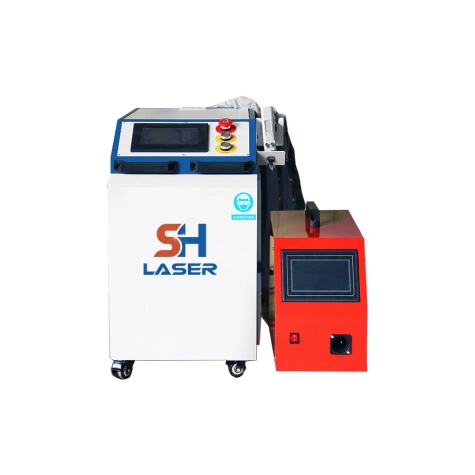

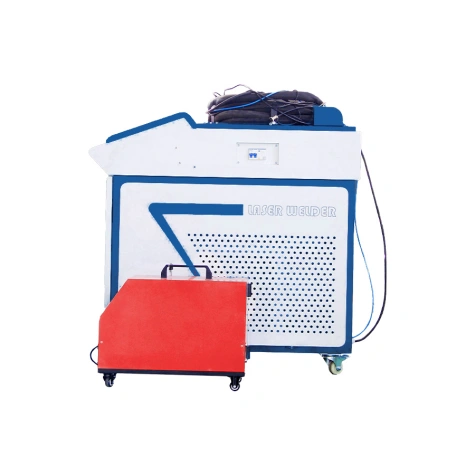

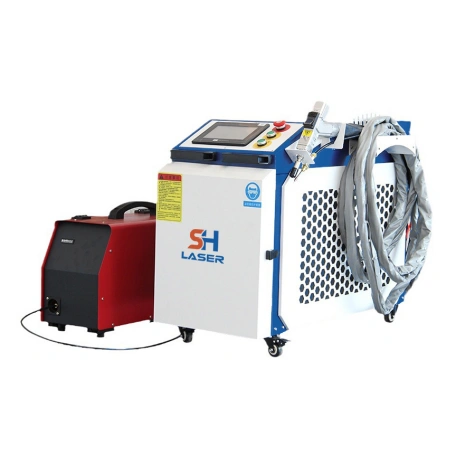

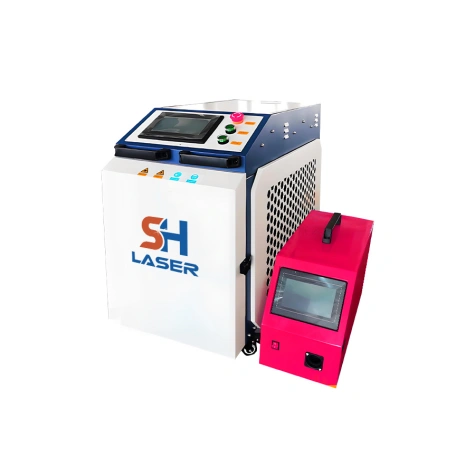

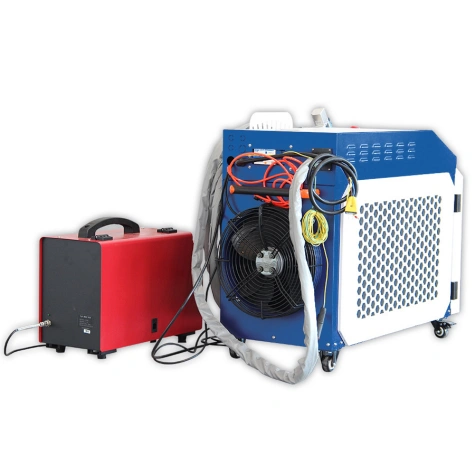

3 In 1Laser Welding Machine
This 3-in-1 laser welding machine integrates welding, cutting, and cleaning functions in one multifunctional device—featuring a precision sheet metal cabinet for stable, smooth operation, imported optical lenses and precision welding torches that deliver uniform light output, full light spots, and high-precision full welding results—while being easy to operate, requiring no professional welder and enabling quick mastery with simple training to simplify industrial processes.
Product Details
High-Quality Welding Head
Pure Copper Nozzle; Precision Red-Light Positioning; Impact & Slag Resistant;
Efficient Heat Dissipation; Stable Power Output.
Integrated Chiller System
Features an advanced; Dual-Temp & Dual-Control mode,utilizing separate independent systems to precisely manageboth high and low temperatures.
Automatic Wire Feeder
It provides fully automatic wire feeding with high precision and is compatible with welding wires ranging from 0.8 to 2.5 mm indiameter.
Intelligent Control System
Easy to use and learn Fast and efficient
Technical Specifications
(Custom configurations available upon request.)
| MODEL | SH-W1500 | SH-W2000 | SH-W3000 |
| Laser Welding Thickness | Carbon steel: 4mm Stainless steel: 4mm Aluminum: 2mm | Carbon steel: 5mm Stainless steel: 5mm Aluminum: 3mm | Carbon steel: 8mm Stainless steel: 8mm Aluminum: 5mm |
| Laser Power | 1500W | 2000W | 3000W |
| Operational Voltage | Single Phase 220V 50/60HZ | Single Phase 220V 50/60HZ | Three Phase 380V 50/60HZ |
| Laser Wavelength | 1080nm | 1080nm | 1080nm |
| Fiber Cable Length | 10-20m | 10-20m | 10-20m |
| Maximum Welding Speed | 0.5-120mm/s | 0.5-120mm/s | 0.5-120mm/s |
| Operating System | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar |
| Laser Welding Head | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar | Sup Laser / Raytools / Relfar |
| Cooling System | Water cooling | Water cooling | Water cooling |
| Working Environment Temperature Range | 10-40℃ | 10-40℃ | 10-40℃ |
| Automatic Wire Feeder | √ | √ | √ |
| Laser Welding Machine Dimensions | 1230*650*1080mm | 1230*650*1080mm | 1230*650*1080mm |
| Laser Welder Machine Weight | 200KG | 200KG | 200KG |
| Laser Welding Gun Weight | 0.75kg | 0.75kg | 0.75kg |
| Consumable Parts | 10 pcs nozzles, 10 pcs protective lenses | ||
Customized Service
If the above specifications do not meet your needs, we can customize according to your requirements, including the power, size, color, and logo of the laser cutting machine, as well as the functions of the product. you can contact us and we will provide you with a complete solution.
Our Advantages
Deep penetration
It provides up to 8mm of penetration, ensuring a more robust weld.
High-temperature welding
High-temperature welded products do not deform.
Perfect Welds
Perfect seams, zero extra cost.
Works on all types of metal
One-side weld, perfect two-side finish
1000w
- Stainless Steel: 2.5 mm
- Mild Steel: 2.5 mm
- Aluminum: 2.0 mm
- Galvanized Steel: 2.5 mm
1500w
- Mild Steel: 4 mm
- Aluminum: 3 mm
- Stainless Steel: 4 mm
- Galvanized Steel: 3 mm
2000W
- Mild Steel: 6 mm
- Aluminum: 5 mm
- Stainless Steel: 6 mm
- Galvanized Steel: 5 mm
3000W
- Mild Steel: 8 mm
- Aluminum: 6 mm
- Stainless Steel: 8 mm
- Galvanized Steel: 6 mm
3 in 1 Laser Welding Machine
3 in 1 Laser welding machine with welding, cutting and cleaning functions.
FAQ
The lifespan of a handheld laser welding machine depends mainly on core components and maintenance. Its most critical part—the laser source—typically lasts over 100,000 hours with proper use, ensuring long-term reliable performance for industrial applications.
Prioritize safety with these key measures: Always wear appropriate PPE (e.g., laser safety glasses) to shield against harmful laser radiation; ensure the workspace is well-ventilated to avoid fume/gas accumulation; regularly inspect the machine for functionality, and keep safety interlocks and emergency stops active to prevent accidents.
Only basic training is needed for safe, efficient operation—typically 1-3 days. Training covers machine components, setup, operating procedures, and adjusting key parameters (laser power, speed, shielding gas flow) for different materials/thicknesses, with a focus on PPE use and high-energy laser safety to enable quick mastery.
